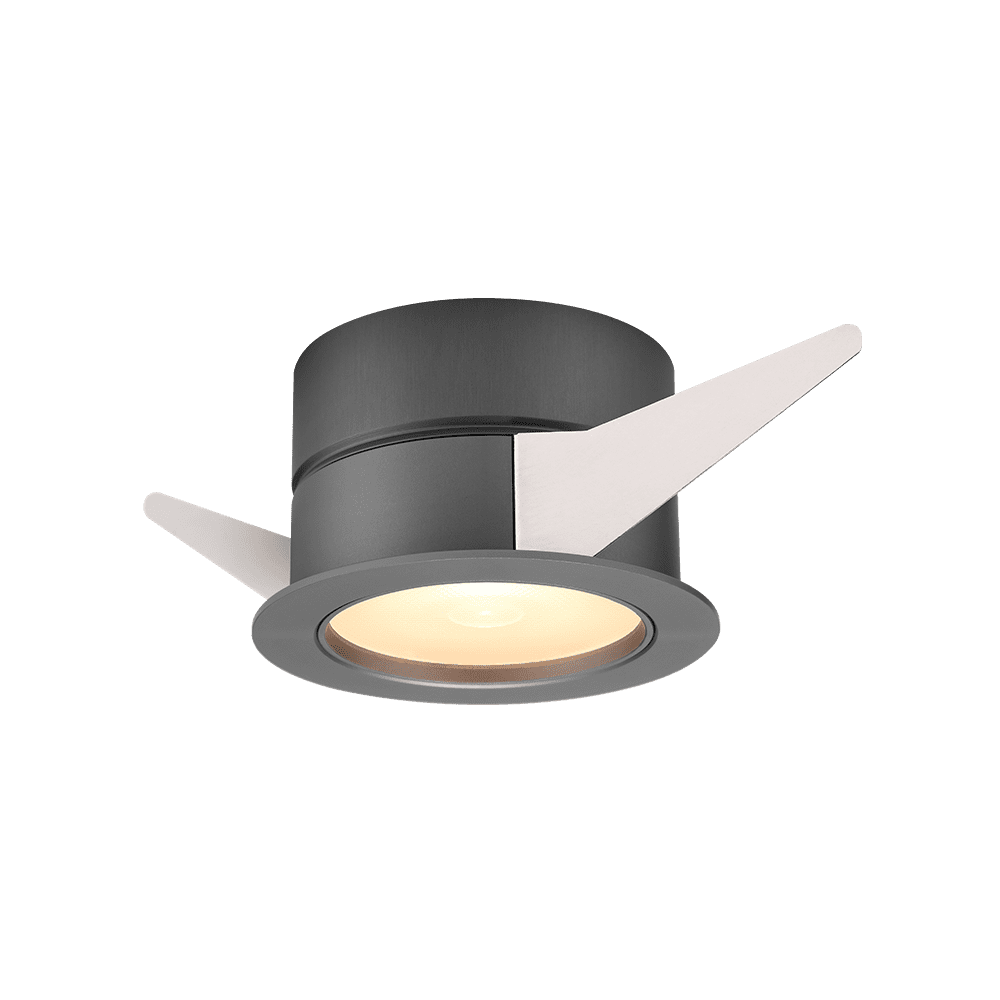

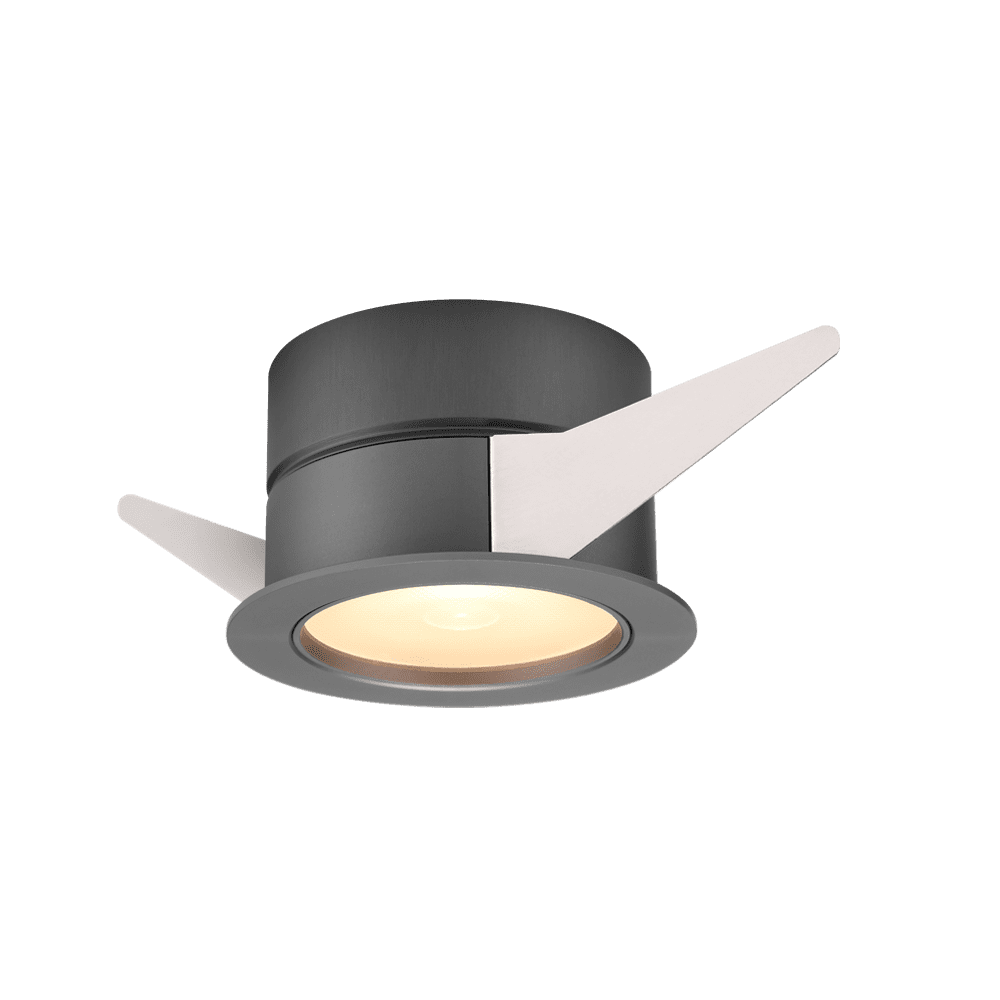

              Mondo A50 IA, Its different light distributions of round, oval, wallwash enable all-round meet different lighting design. Neat and soft light with high color rendering CRI97, presents the true color of space very well and improve more efficient visual comfort. Its shallow depth easily facilitates installation in false ceilings of any thickness, providing great design flexibility.

            Downlight

                BEAM ANGLE

                  25o/36o/60o/80o
Round

                  50x30o / 20x60o
Oval

                  50x30o Asymmetric 25o
Wallwasher
SPECIFICATIONS

                    2700K CRI 97 7W Led Flux 560lm

                    3000K CRI 97 7W Led Flux 630lm

                    3500K CRI 97 7W Led Flux 640lm

                    4000K CRI 97 7W Led Flux 650lm

                    2700K CRI 97 9W Led Flux 720lm

                    3000K CRI 97 9W Led Flux 810lm

                    3500K CRI 97 9W Led Flux 830lm

                    4000K CRI 97 9W Led Flux 850lm

                    2700K CRI 97 12W Led Flux 960lm

                    3000K CRI 97 12W Led Flux 980lm

                    3500K CRI 97 12W Led Flux 990lm

                    4000K CRI 97 12W Led Flux 1000lm
Tunable White
CONTROL

                  0/1 -10V dimmable

                  DALI dimmable

                  Phase dimmable (Triac)

                  Casambi dimmable
OPTIONAL ACCESSORIES

                  Color coated lens

                  Honeycomb louver
HOUSING COLOUR

                  Black

                  Silvery

                  Customized
System Electrical: AC220-240V, 50/60Hz; PF>0.9

            25°

            36°

            60°

            80°

            50x30°

            20x60°

            50x30° Asymmetric 25°
