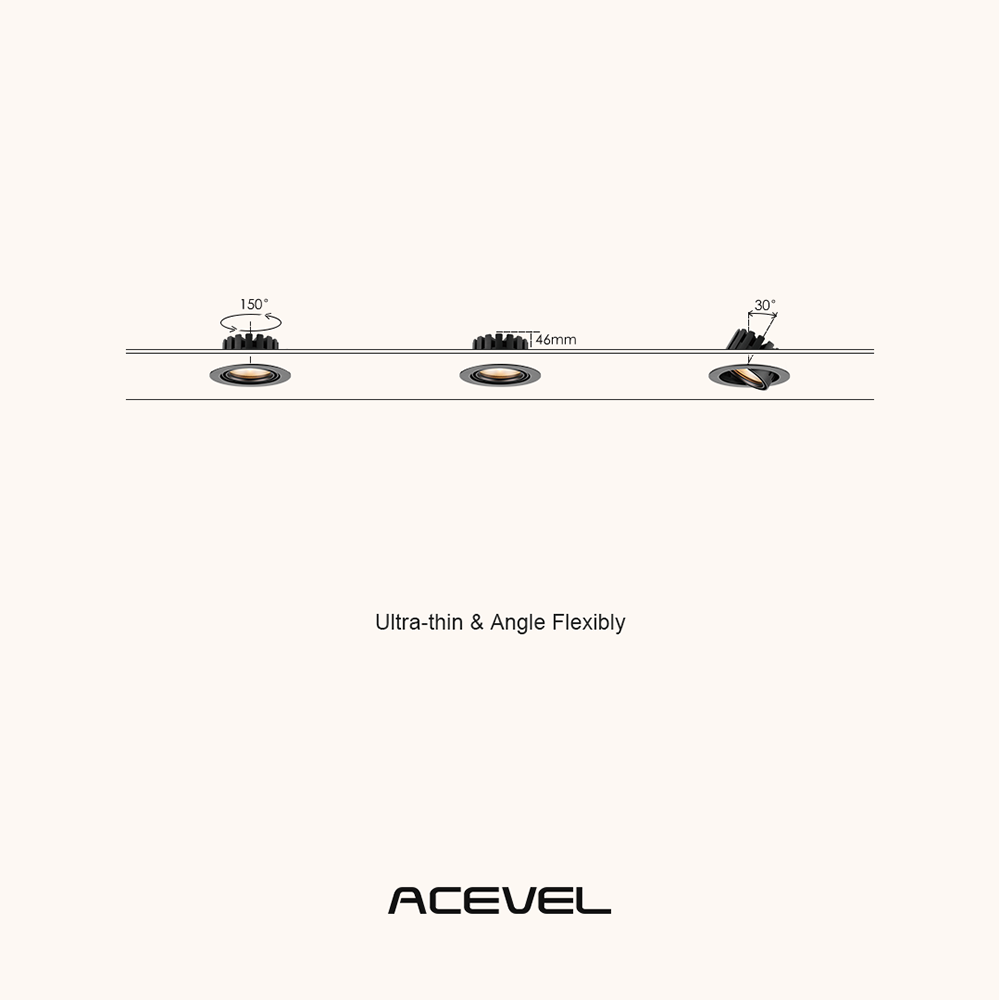

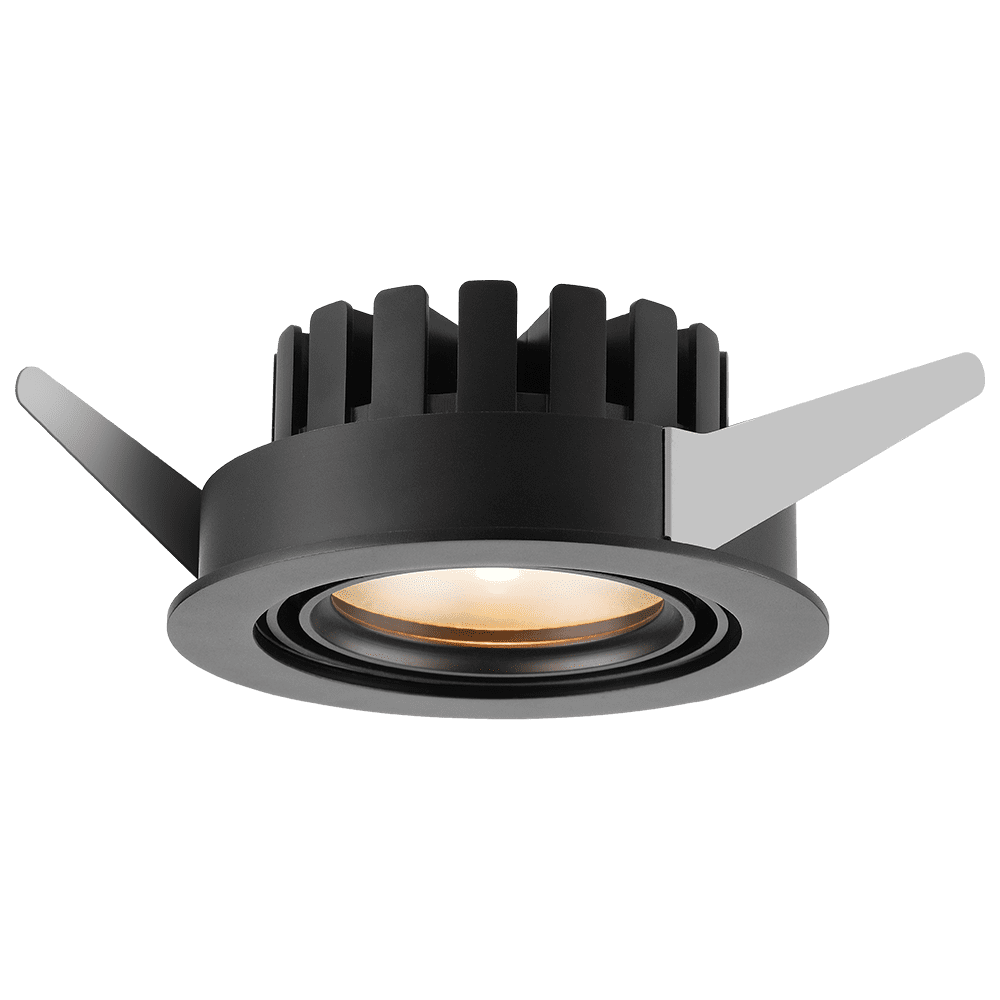

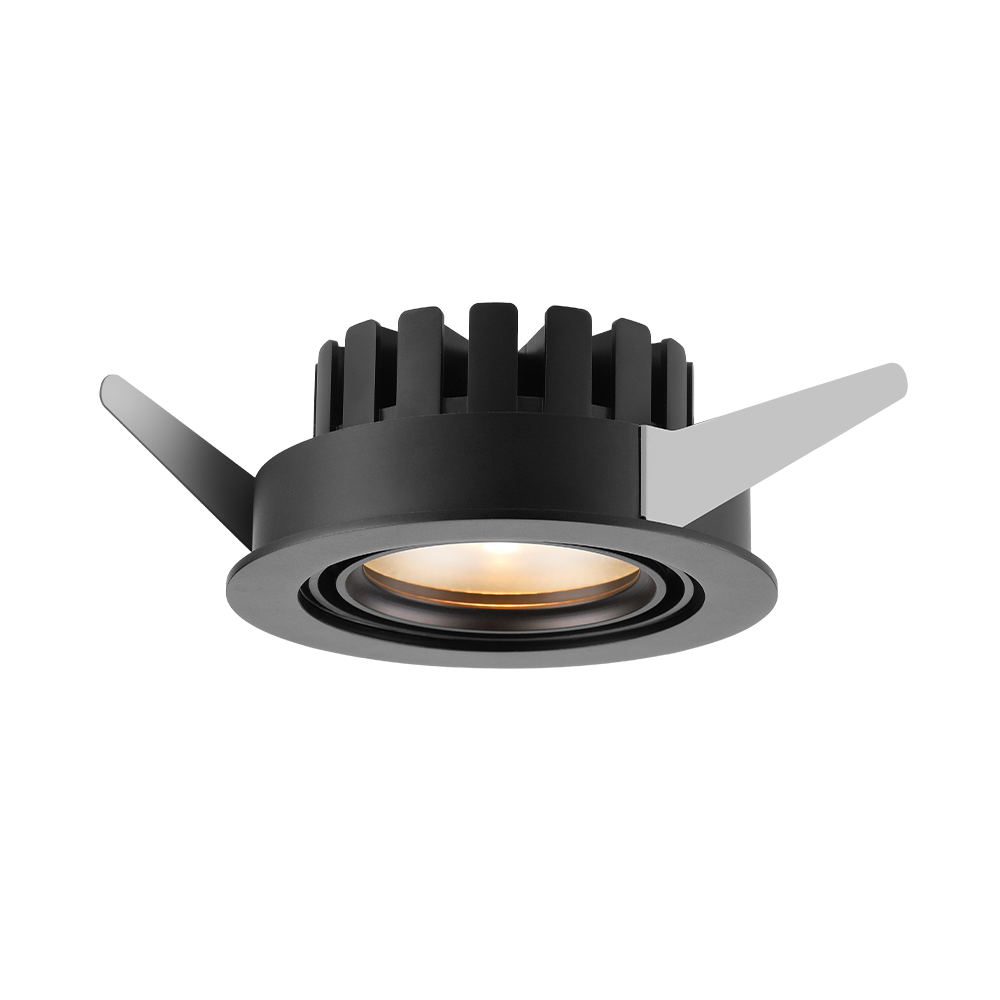

Q100, it allows you to rotate or tilt the lamp to direct the angle needed, creating a high quality illumination. Its low height easily facilitates installation in false ceilings of any thickness, providing great design flexibility.
Downlight
BEAM ANGLE
10o
Round
20o
Round
30o
Round
20X60o/30X70o/30X80o
Oval
SPECIFICATIONS
2700K CRI 97 12W Led Flux 960lm
3000K CRI 97 12W Led Flux 980lm
3500K CRI 97 12W Led Flux 990lm
4000K CRI 97 12W Led Flux 1000lm
2700K CRI 97 15W Led Flux 1200lm
3000K CRI 97 15W Led Flux 1280lm
3500K CRI 97 15W Led Flux 1290lm
4000K CRI 97 15W Led Flux 1300lm
2700K CRI 97 18W Led Flux 1440lm
3000K CRI 97 18W Led Flux 1500lm
3500K CRI 97 18W Led Flux 1525lm
4000K CRI 97 18W Led Flux 1550lm
Tunable White
CONTROL
0/1 -10V dimmable
DALI dimmable
Phase dimmable (Triac)
Casambi dimmable
OPTIONAL ACCESSORIES
Color coated lens
Elliptical diffusion lens
Honeycomb louver
HOUSING COLOUR
Black
White
Customized
System Electrical: AC220-240V, 50/60Hz; PF＞0.9
YOUR LIGHT, DESIGN FOR ANGLE CONTROL EASILY
Plan your own exclusive design solution
10°
20°
30°
20X60°
30x70°
30x80°
