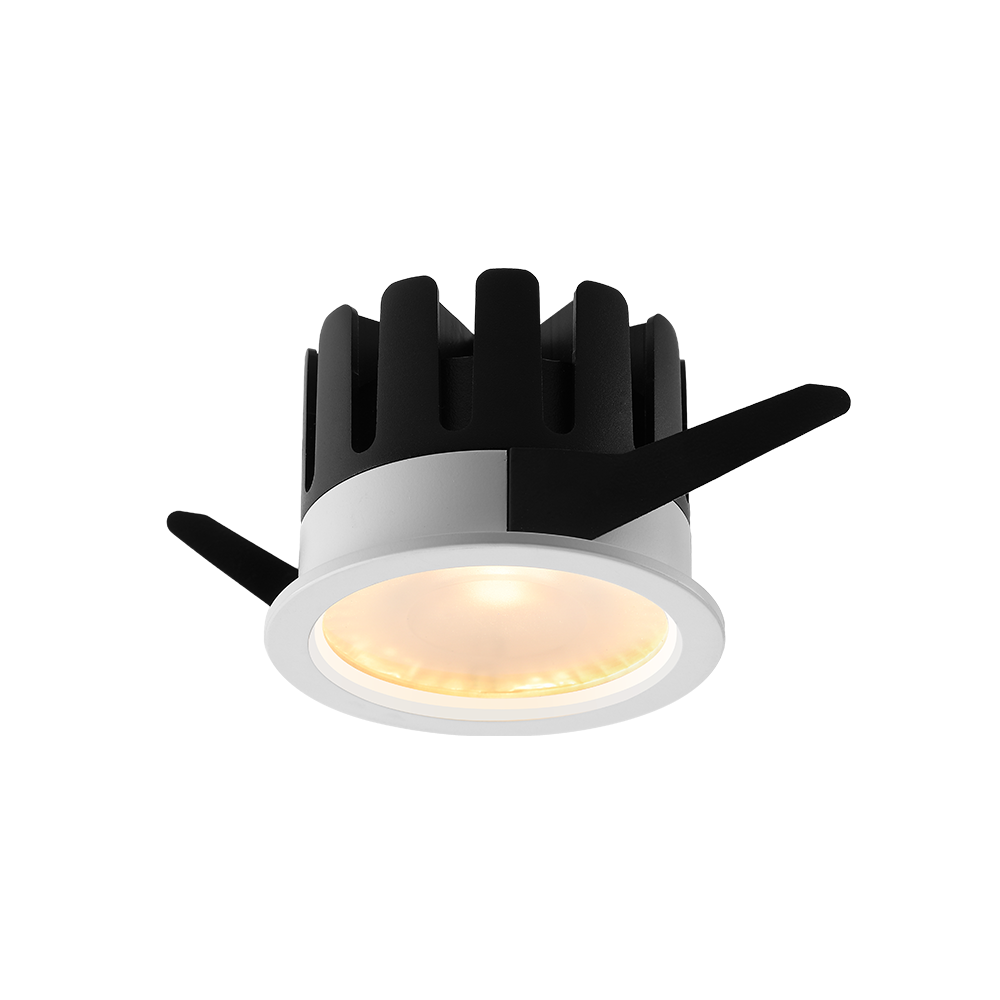

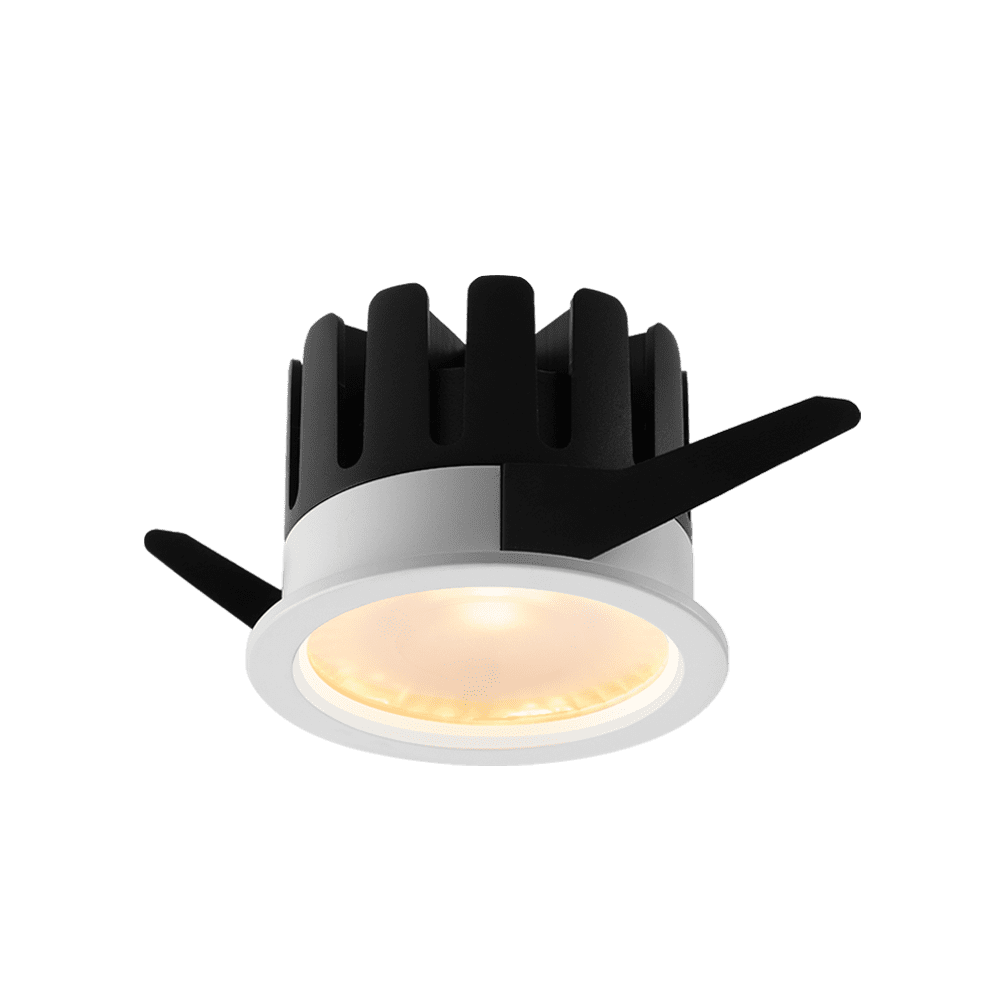

Nano Q50

Q50 downlight smoothly blends into the interior design, providing subtle illumination from the ceiling. Its small size, only 4cm height, 5cm cutting hole, while great power , meets even the most exacting demands. The height of the exquisite appearance downlight is lower than the furring channel 1cm. It is not only with high lumen but also neat and soft spot without any multiple shadows.

Downlight

BEAM ANGLE

15o

Round

24o

Round

36o

Round

45o

Round

60o

Round

SPECIFICATIONS

2700K CRI 97 5W Led Flux 400lm

3000K CRI 97 5W Led Flux 450lm

3500K CRI 97 5W Led Flux 460lm

4000K CRI 97 5W Led Flux 470lm

2700K CRI 97 7W Led Flux 560lm

3000K CRI 97 7W Led Flux 630lm

3500K CRI 97 7W Led Flux 640lm

4000K CRI 97 7W Led Flux 650lm

2700K CRI 97 9W Led Flux 720lm

3000K CRI 97 9W Led Flux 810lm

3500K CRI 97 9W Led Flux 830lm

4000K CRI 97 9W Led Flux 850lm

Tunable White

CONTROL

0/1 -10V dimmable

DALI dimmable

Phase dimmable (Triac)

Casambi dimmable

HOUSING COLOUR

Black

White

Customized

System Electrical: AC220-240V, 50/60Hz; PF>0.9

UGR<19, ULTRA-THIN

Plan your own exclusive design solution

15°

24°

36°

45°

60°
