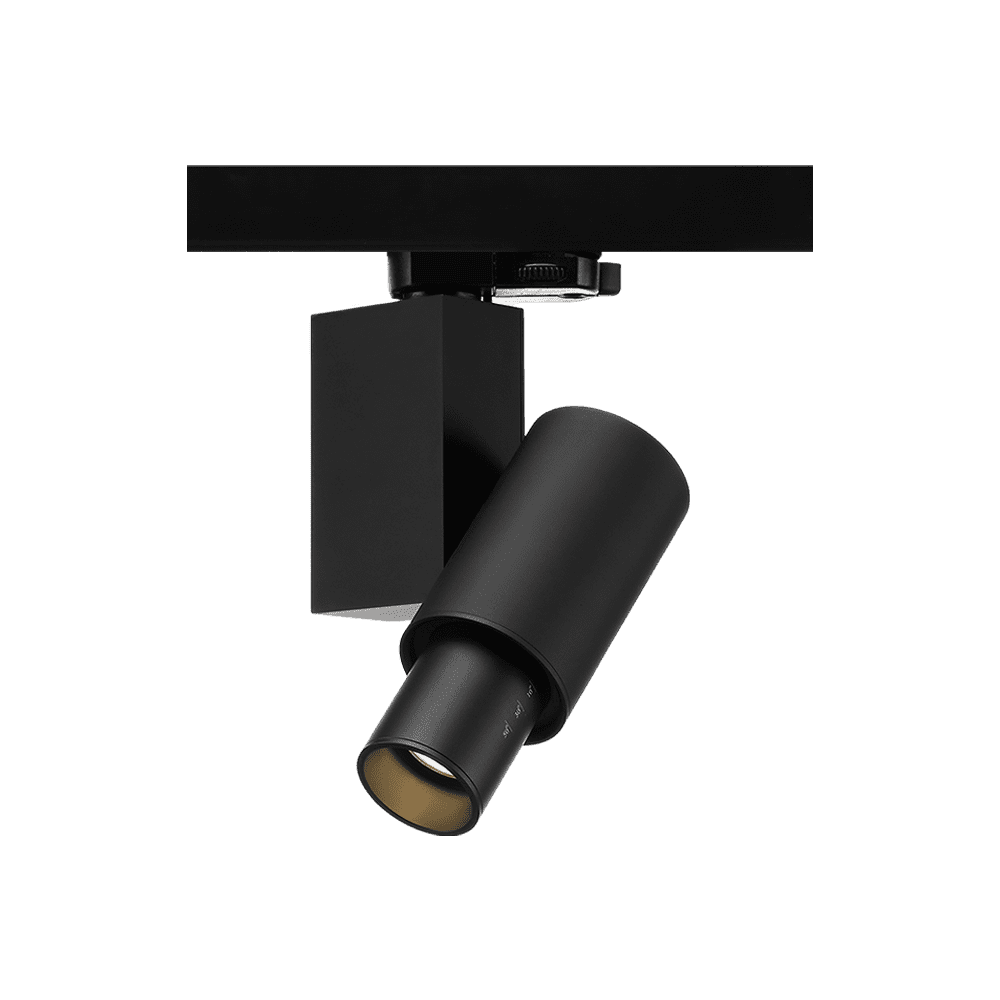

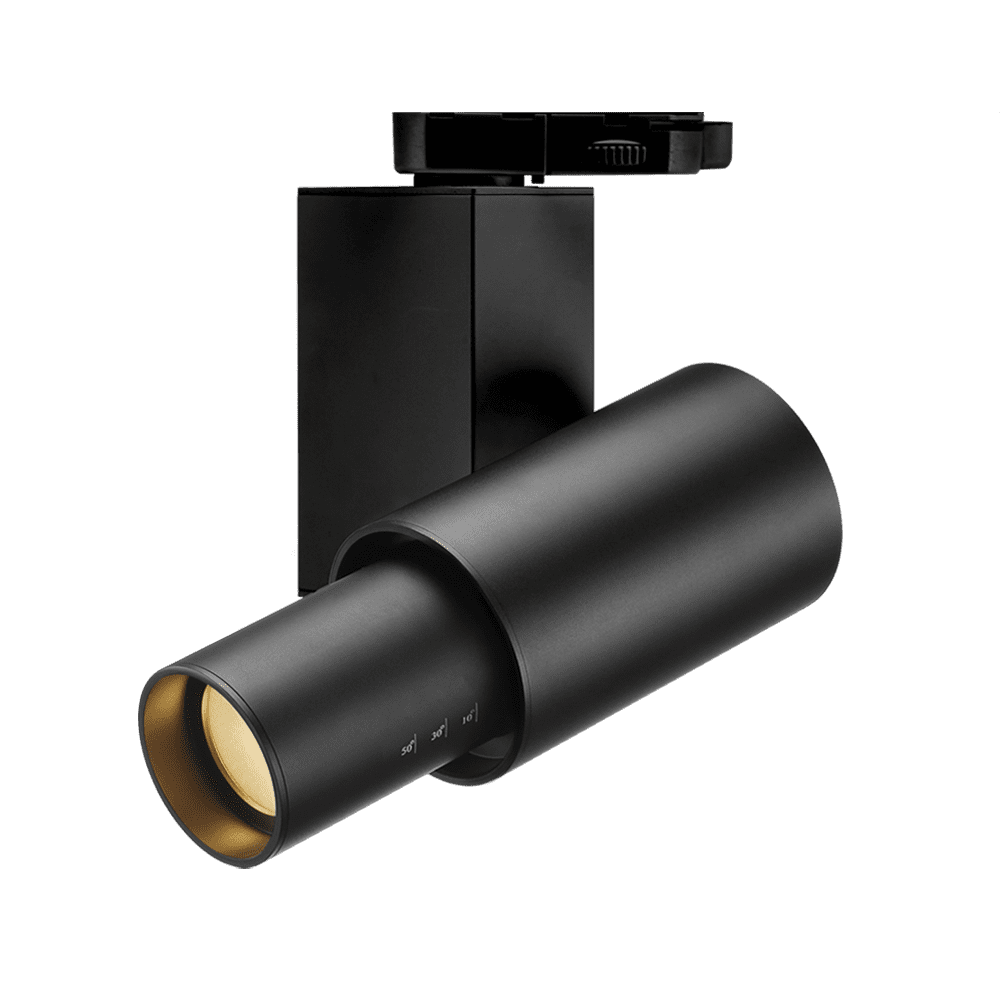

Discovery TL0025

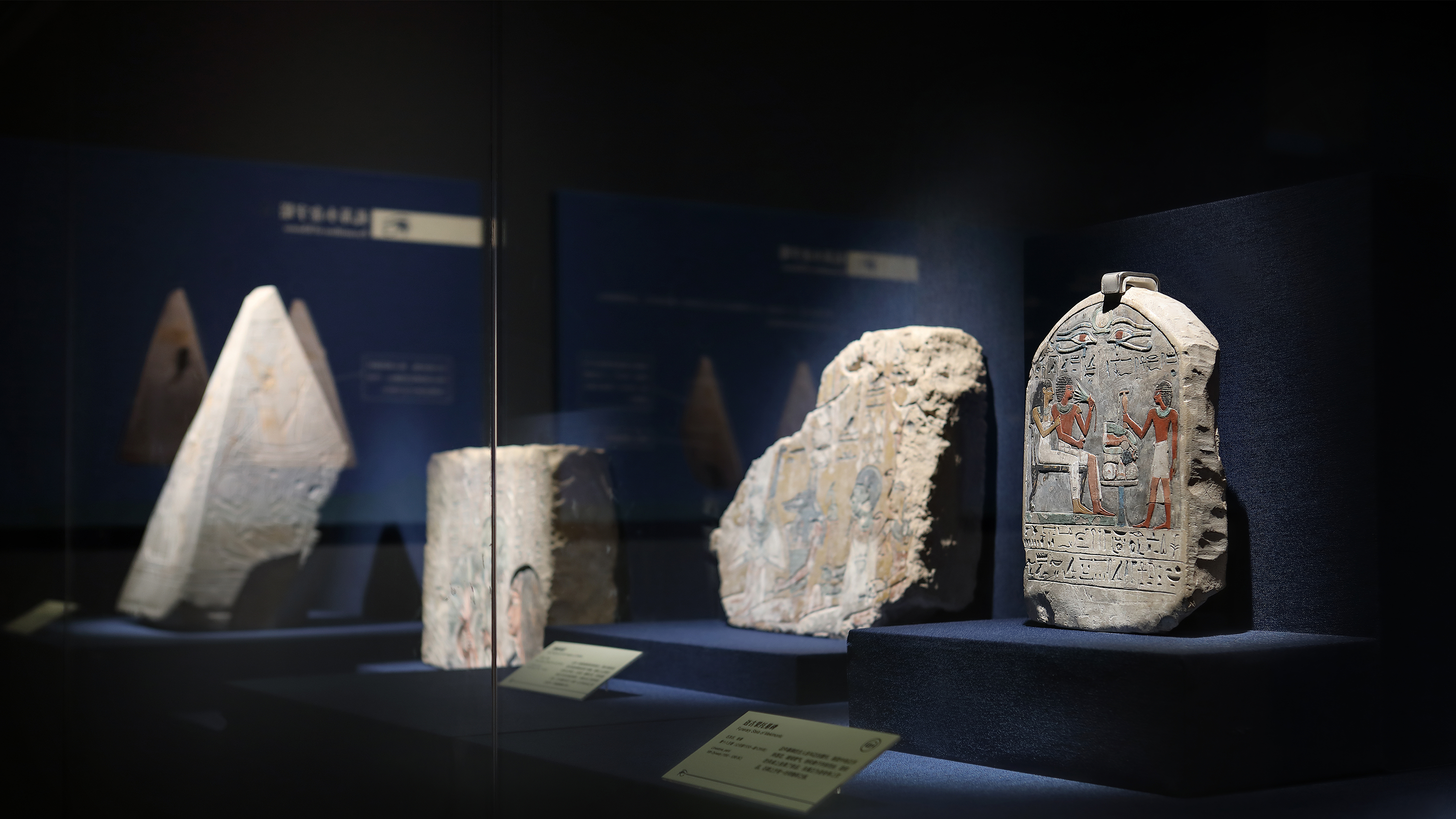

The spotlight of Discovery, is the focus lighting for museums, exhibitions, art galleries, showroom or places of worship, etc. The light beam angle can be manually continuous adjusted from 10 ° to 50 ° by push-pulling the lens. Round, oval, rectangular light distributions are available by changing the lens. Zoom spotlights are particularly suitable for illuminating areas with changing objects.

Track

BEAM ANGLE

10~50o

Round

1x60o / 10x60o/ 15x60o / 30x60o

Oval

SPECIFICATIONS

2700K CRI 97 6W Led Flux 660lm

3000K CRI 97 6W Led Flux 702lm

3500K CRI 97 6W Led Flux 711lm

4000K CRI 97 6W Led Flux 720lm

2700K CRI 97 12W Led Flux 1320lm

3000K CRI 97 12W Led Flux 1404lm

3500K CRI 97 12W Led Flux 1422lm

4000K CRI 97 12W Led Flux 1440lm

Tunable White

RGB

RGBW

CONTROL

0/1 -10V dimmable

DALI dimmable

Phase dimmable (Triac)

Casambi dimmable

OPTIONAL ACCESSORIES

Color coated lens

Ceiling adapter

Elliptical diffusion lens

HOUSING COLOUR

Black

White

Customized

DOWNLOADS

System Electrical: AC220-240V, 50/60Hz; PF>0.9

EXTREAME VISUAL ENJOYMENT

Plan your own exclusive design solution

10~50°

1x60°

10x60°

15x60°

30x60°
