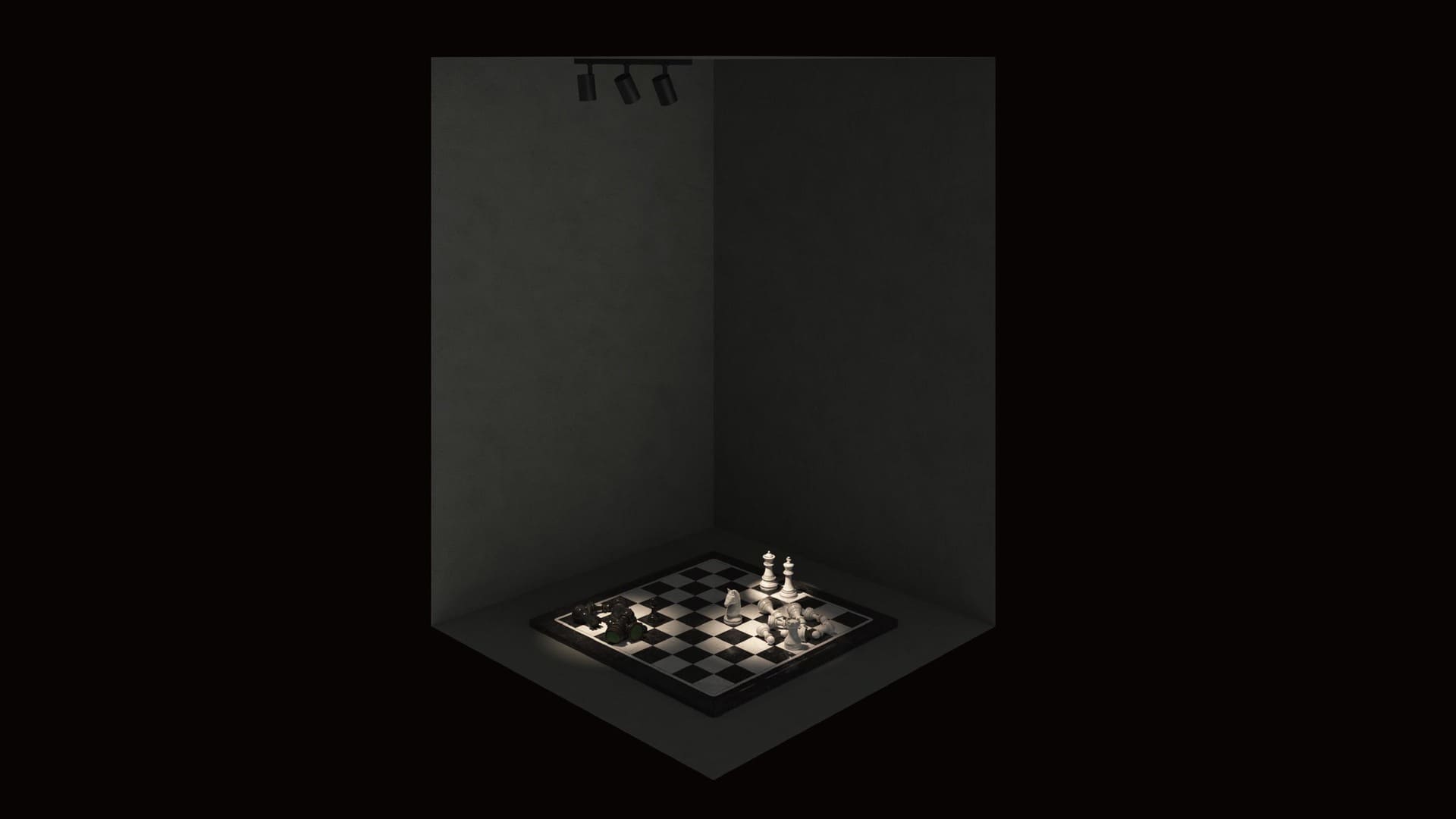

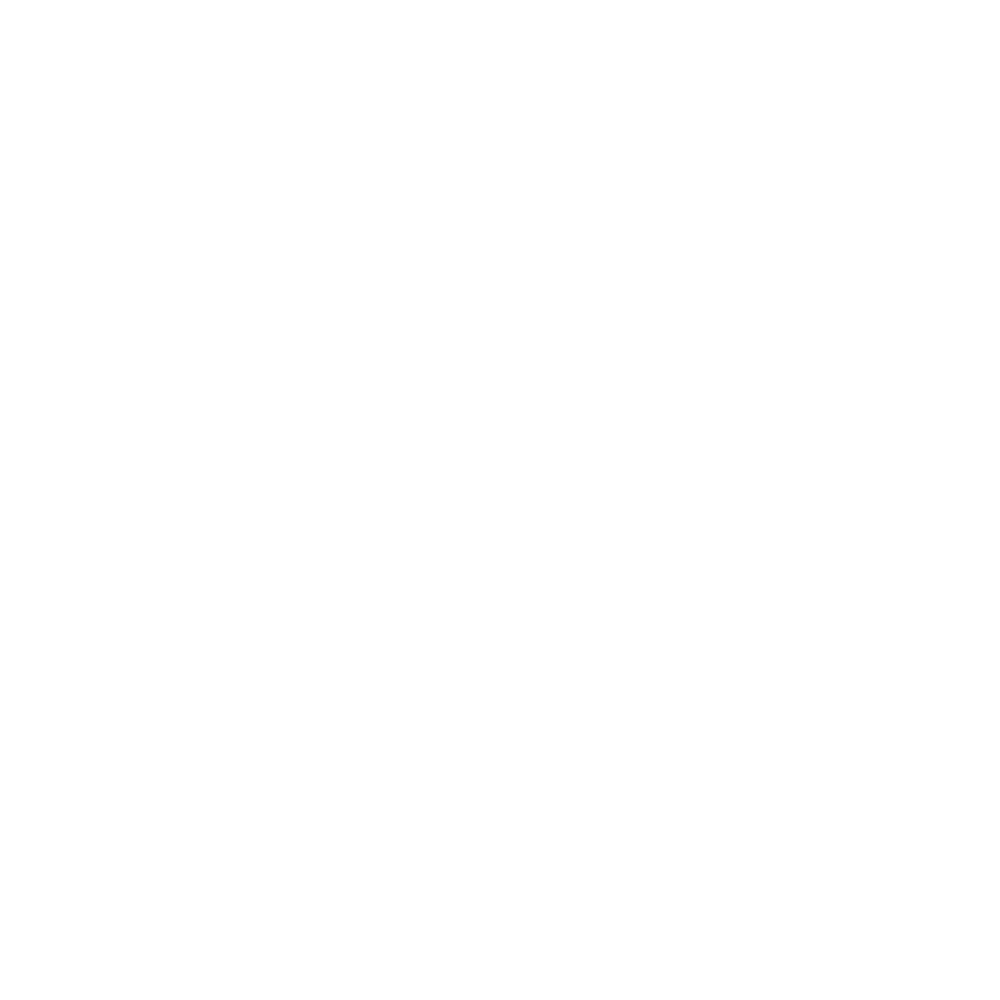

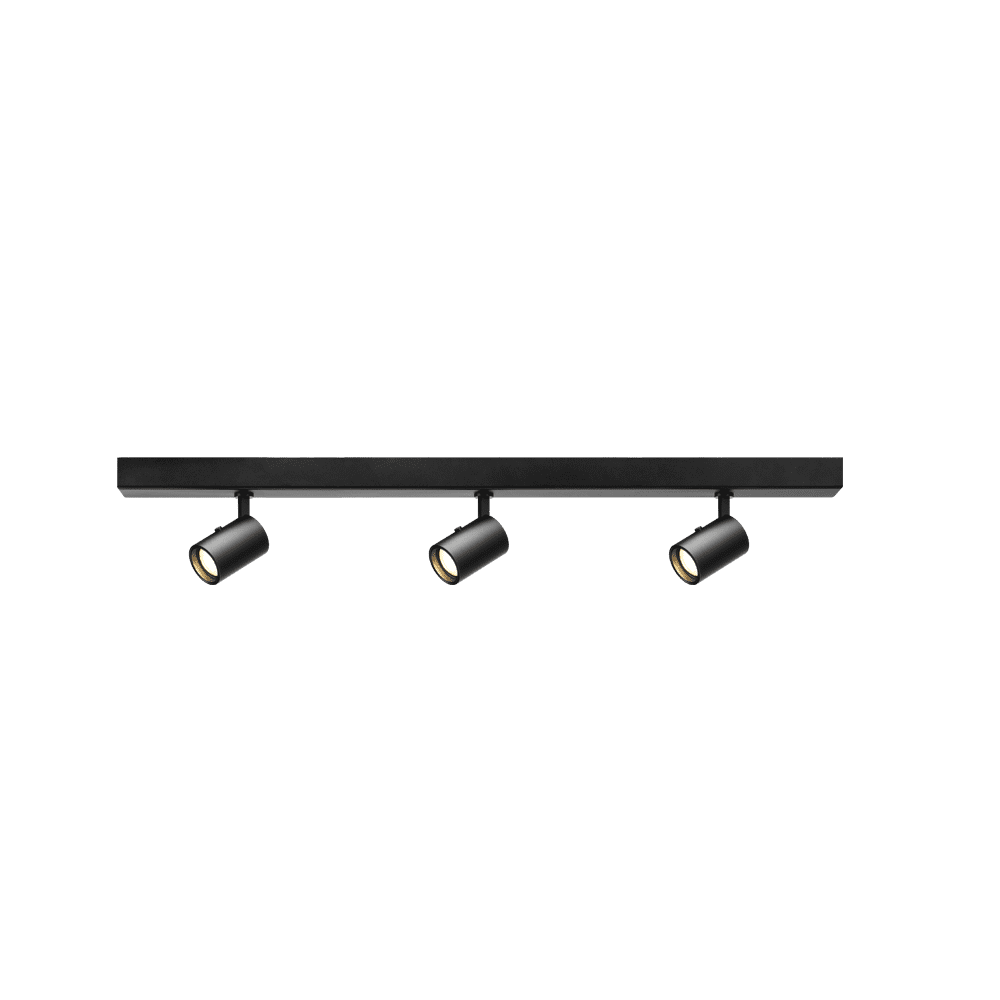

Infinity V28 Studio is fixed with 3 luminaires heads in square surface mounted style. It is flexible and easy to install. Thanks to its particular flexibility and adjustability, this 3-8 ° , 6-45 ° zoom spot is the ideal fixture for museums and high end cabinets to show different exhibits.

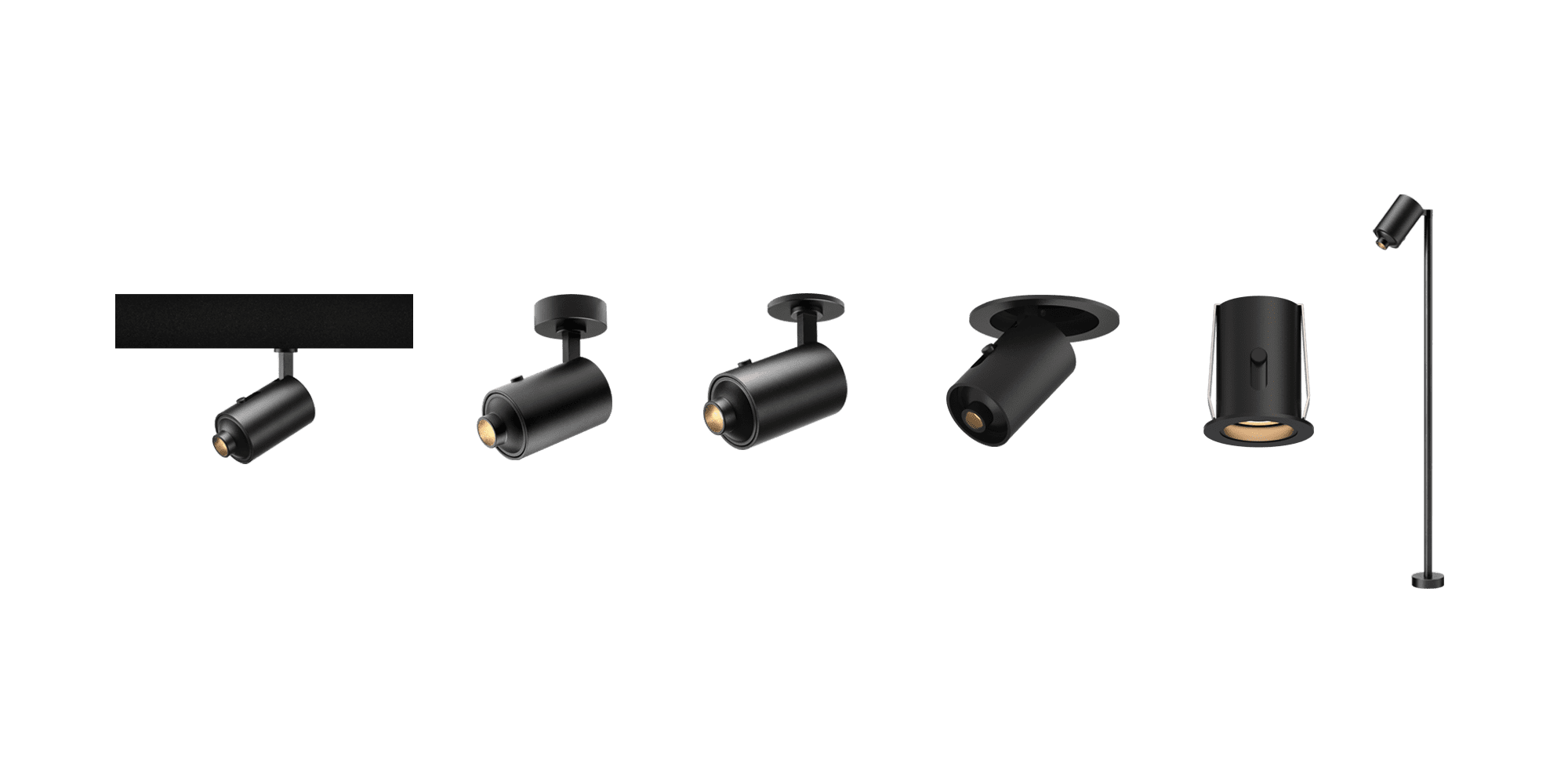

All

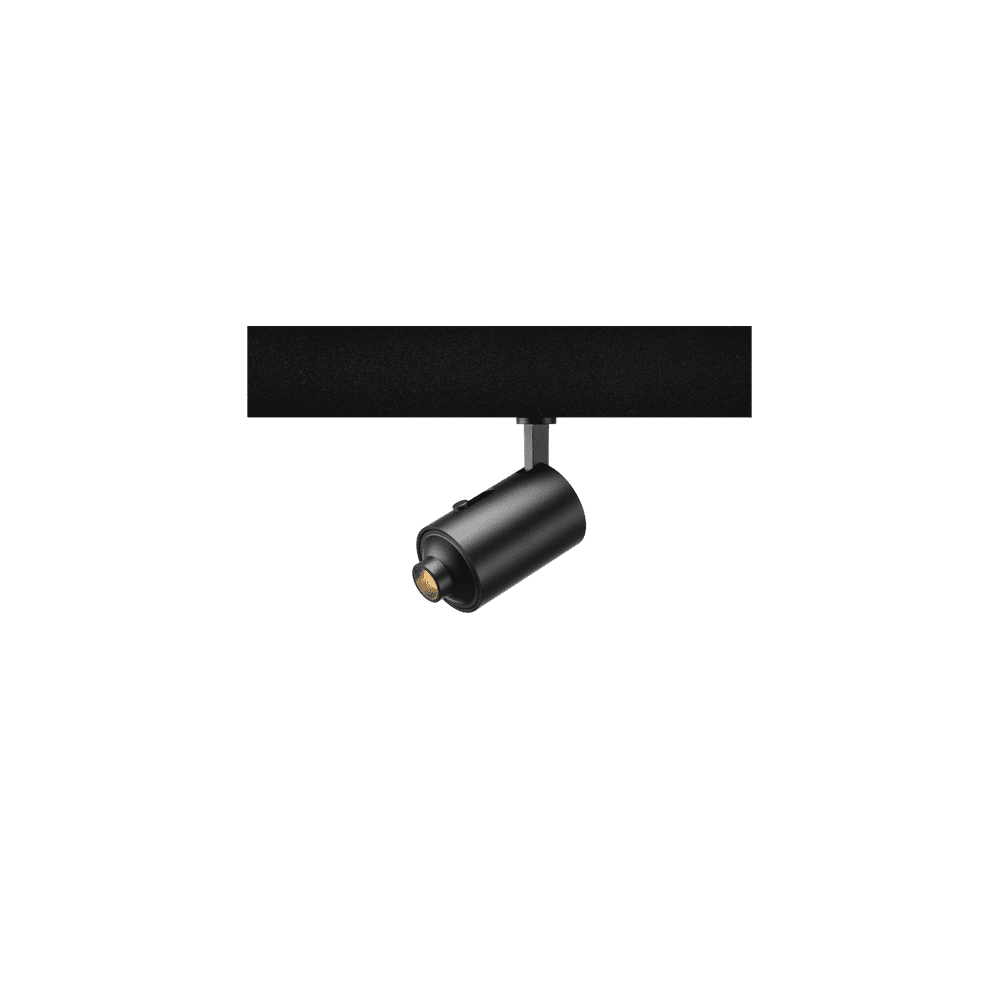

Magnetic

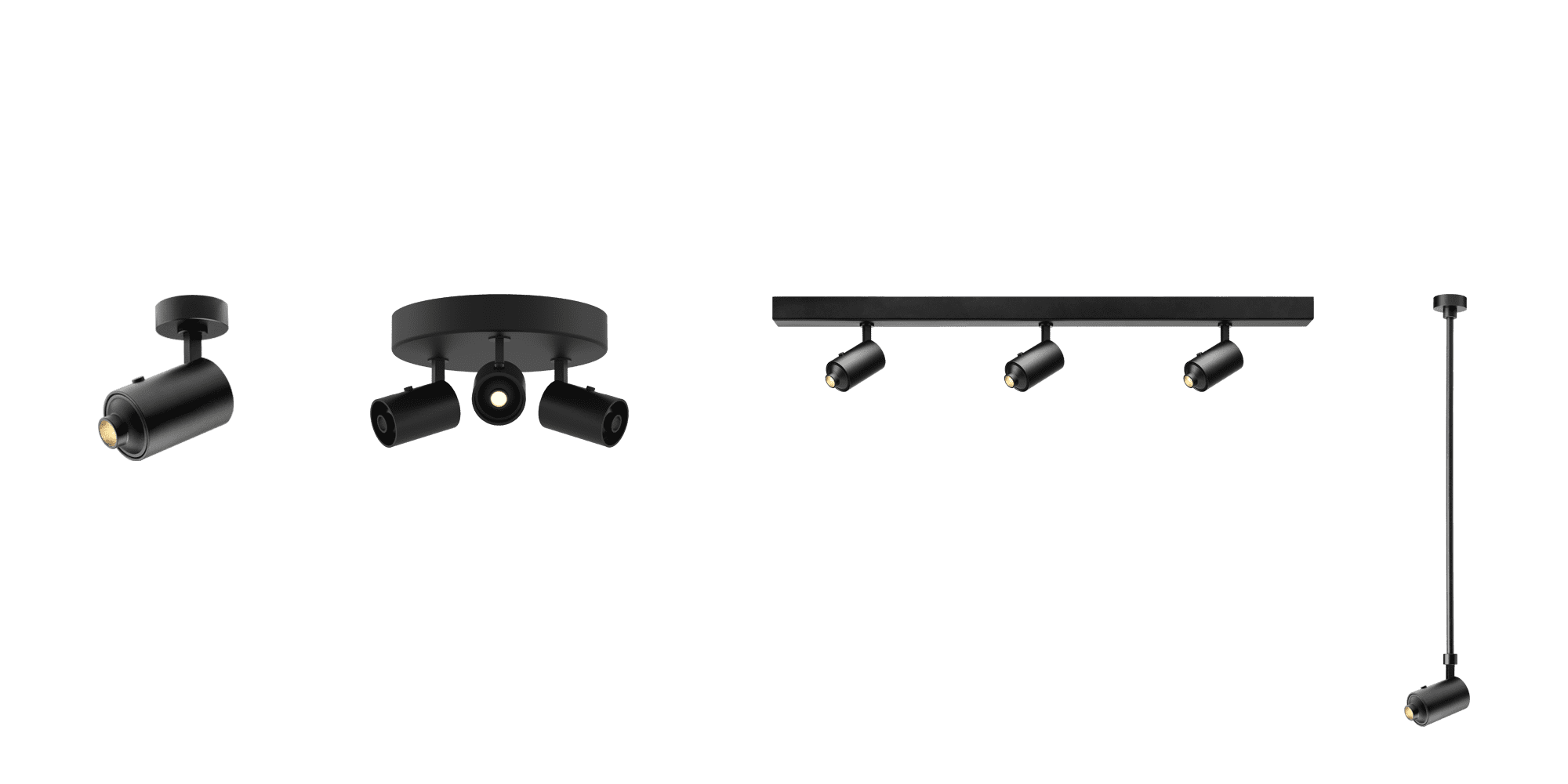

Ceiling

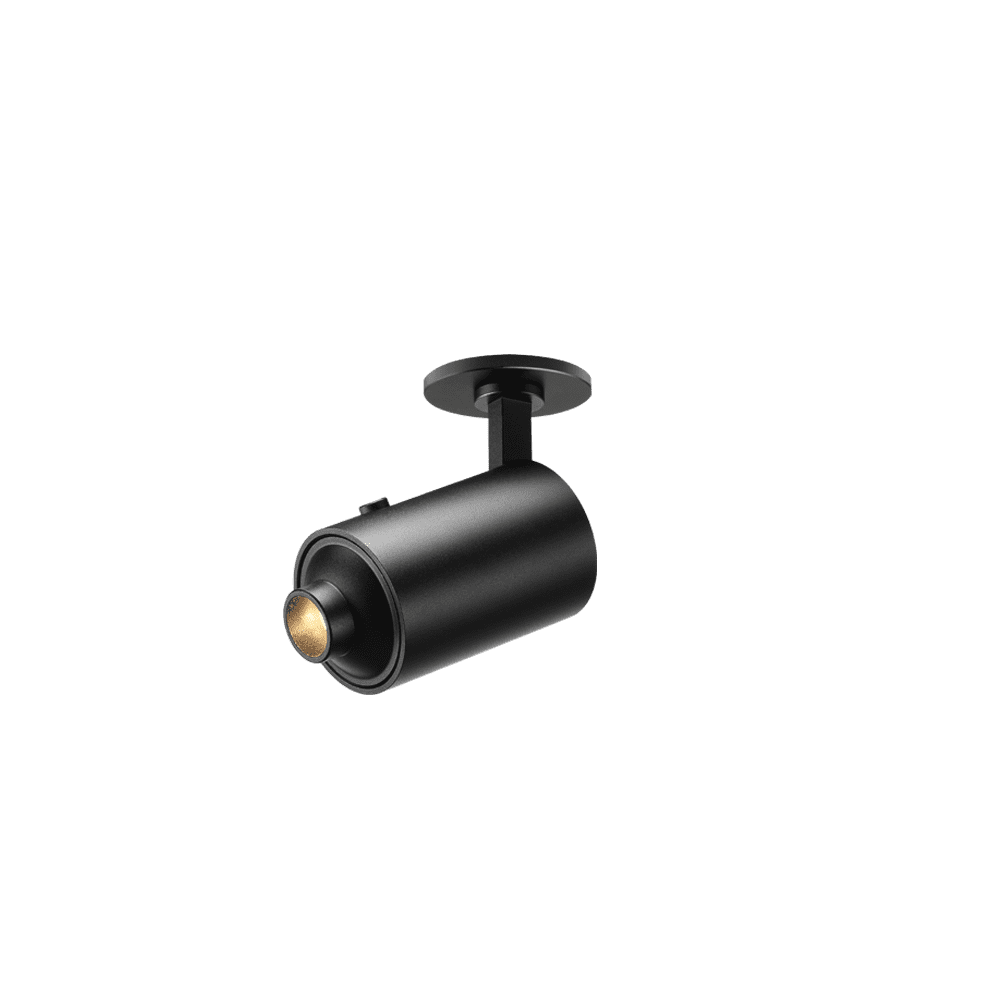

Embedded

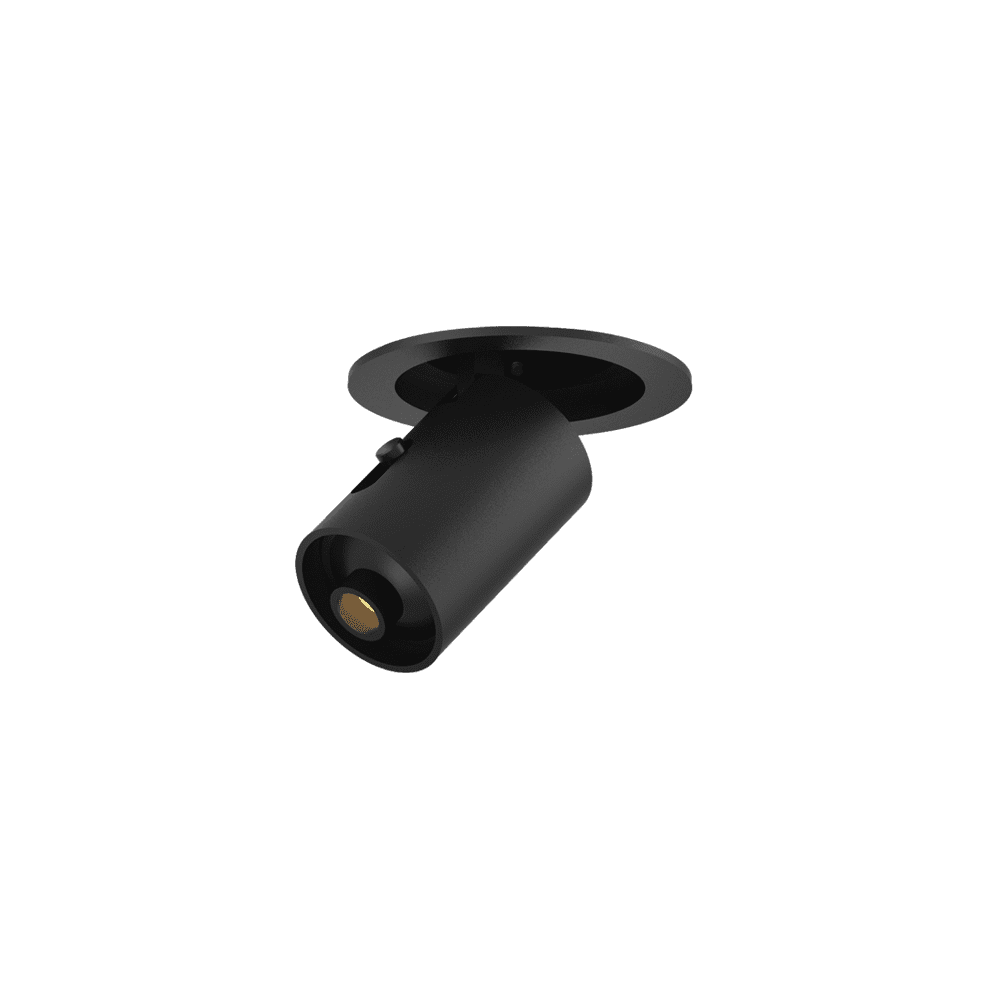

Recessed

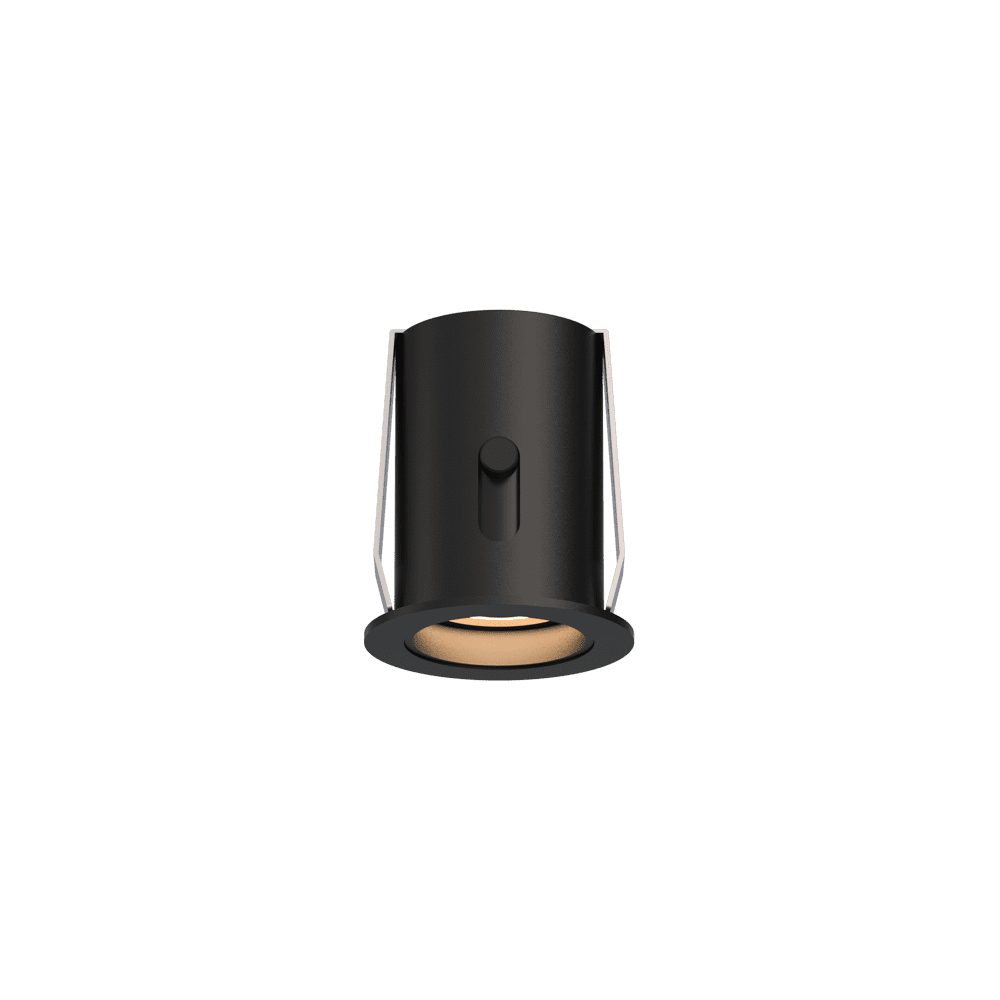

Downlight

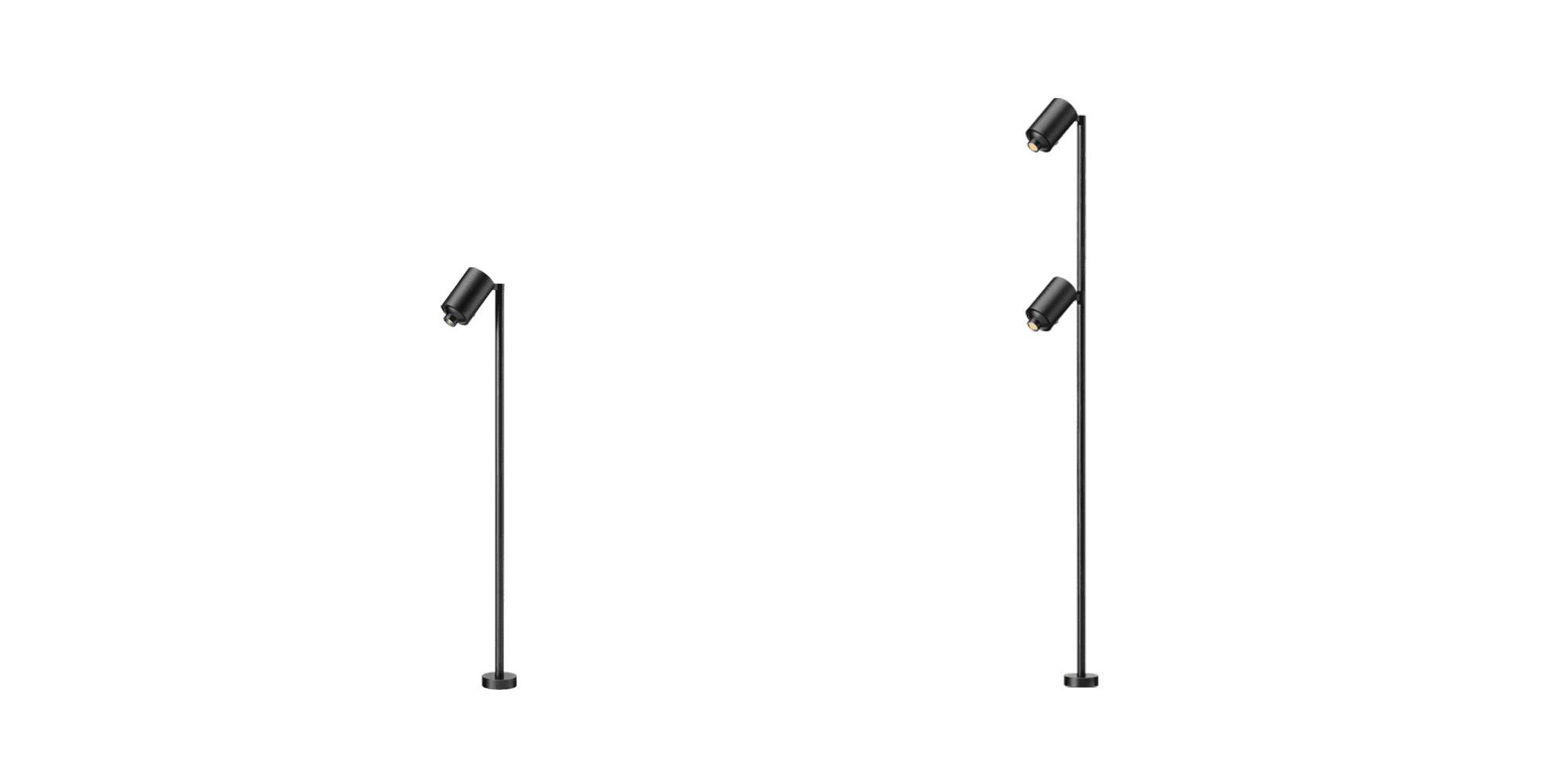

StandingPole
BEAM ANGLE
3~8o / 6~45o
Round
8o/12o/24o/36o
Round
SPECIFICATIONS
2700K CRI 95 3x1W Led Flux 300lm
3000K CRI 95 3x1W Led Flux 320lm
3500K CRI 95 3x1W Led Flux 331lm
4000K CRI 95 3x1W Led Flux 342lm
2700K CRI 95 3x2W Led Flux 390lm
3000K CRI 95 3x2W Led Flux 426lm
3500K CRI 95 3x2W Led Flux 445lm
4000K CRI 95 3x2W Led Flux 465lm
2700K CRI 95 3x3W Led Flux 600lm
3000K CRI 95 3x3W Led Flux 660lm
3500K CRI 95 3x3W Led Flux 676lm
4000K CRI 95 3x3W Led Flux 690lm
CONTROL
0/1 -10V dimmable
DALI dimmable
Phase dimmable (Triac)
Casambi dimmable
OPTIONAL ACCESSORIES
Color coated lens
Barn doors
Honeycomb louver
HOUSING COLOUR
Black
Silvery
Customized
System Electrical: 3x3W / DC9V 700mA(MAX)
3~8°
6~45°
8°
12°
24°
36°
