V28 Summit, it is the extension of Infinity range with the recessed mounting, is widely used in articles of luxury, museum, shopping areas, especially in showcase. Zoom beam angle with 3-8 ° , 6-45 is particularly flexible for the lighting design, and it is the best solution to highlight details in exhibition niches, to catch the viewer’s attention.
All

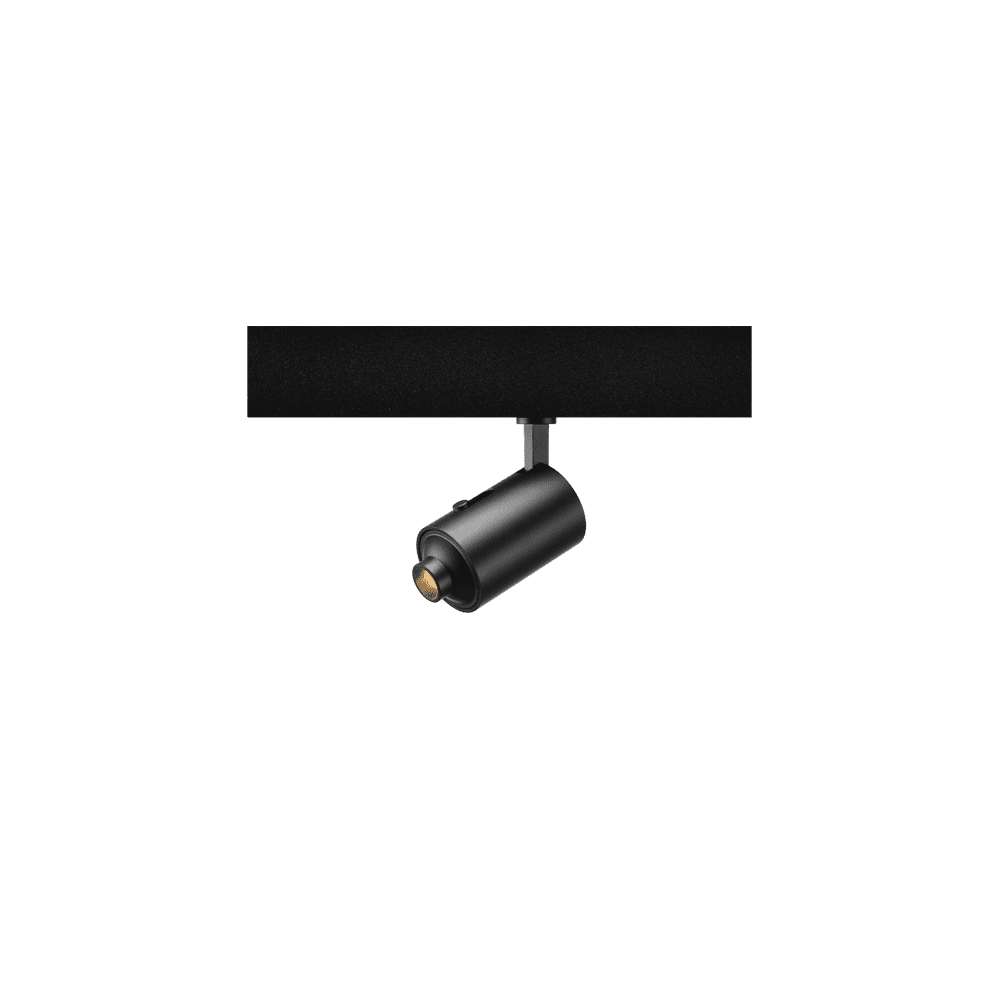

Magnetic

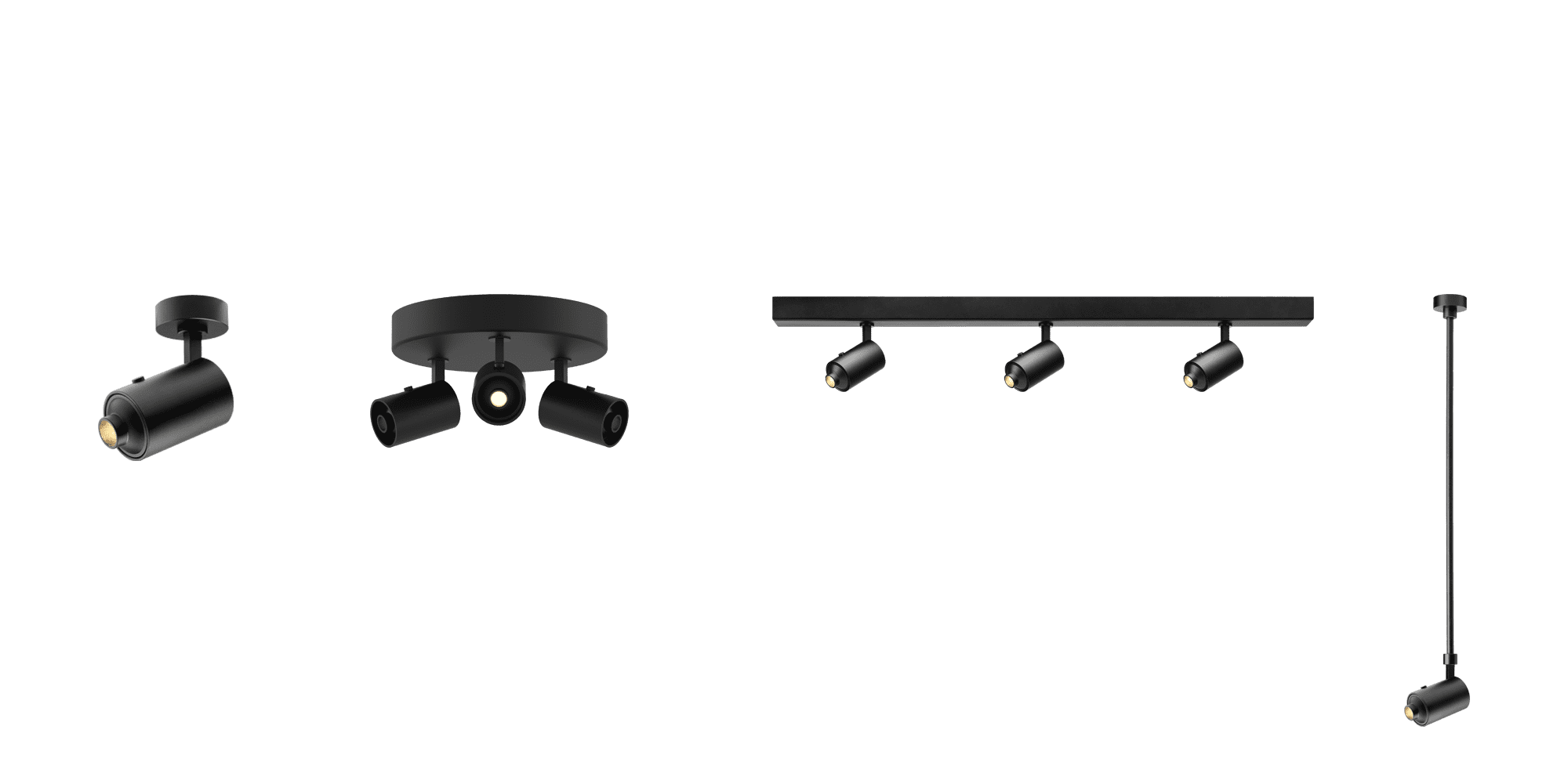

Ceiling

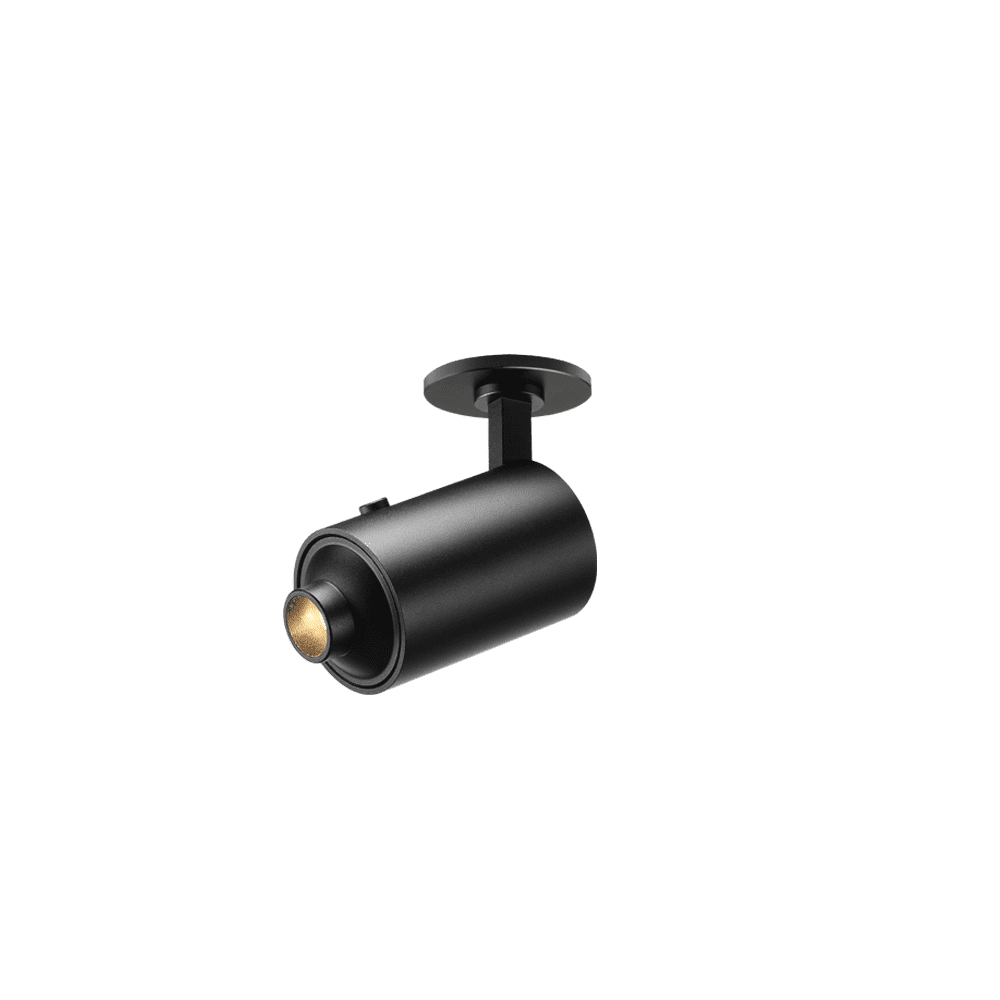

Embedded

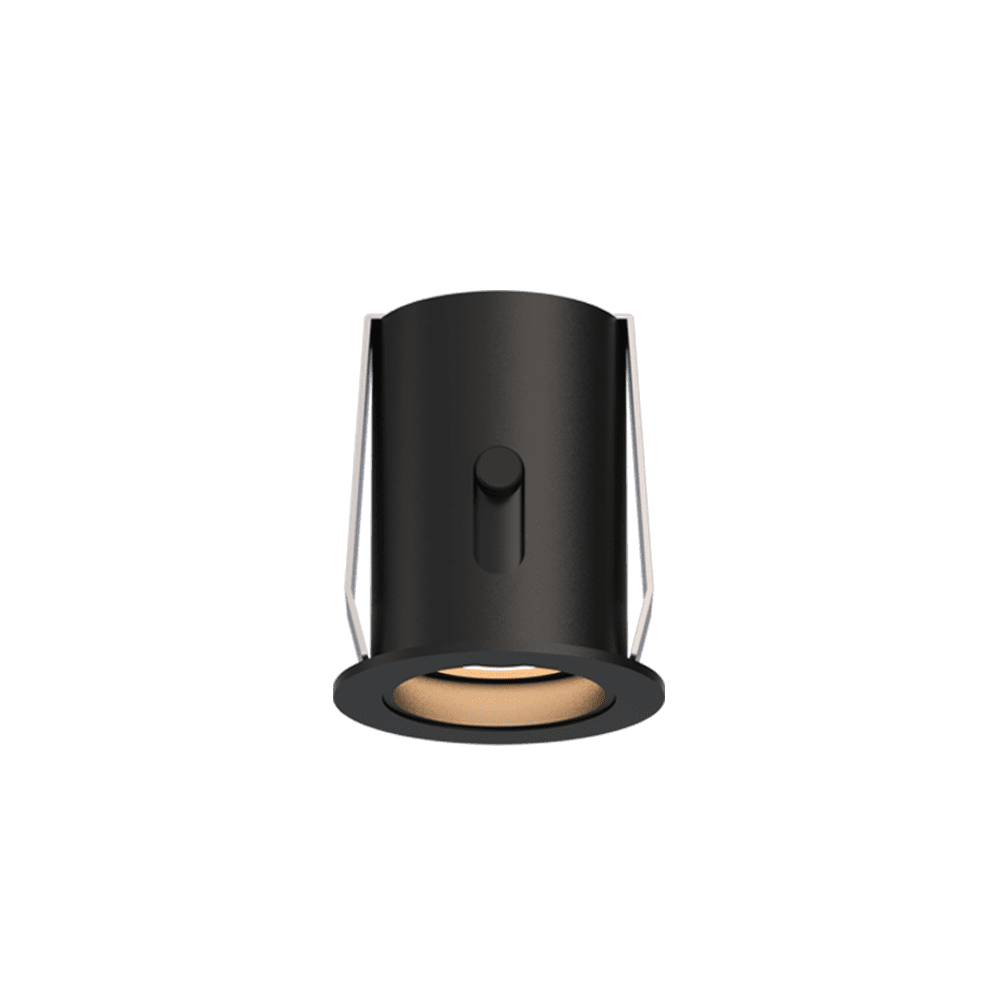

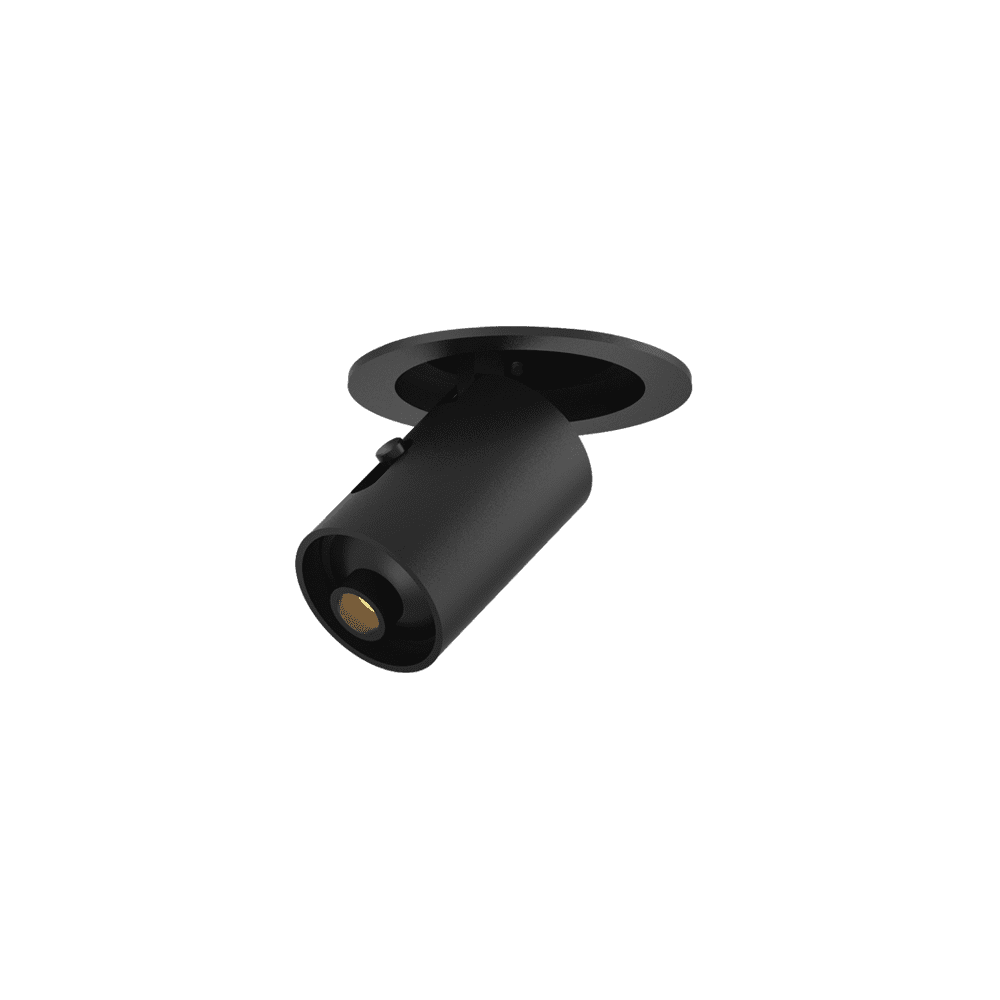

Recessed

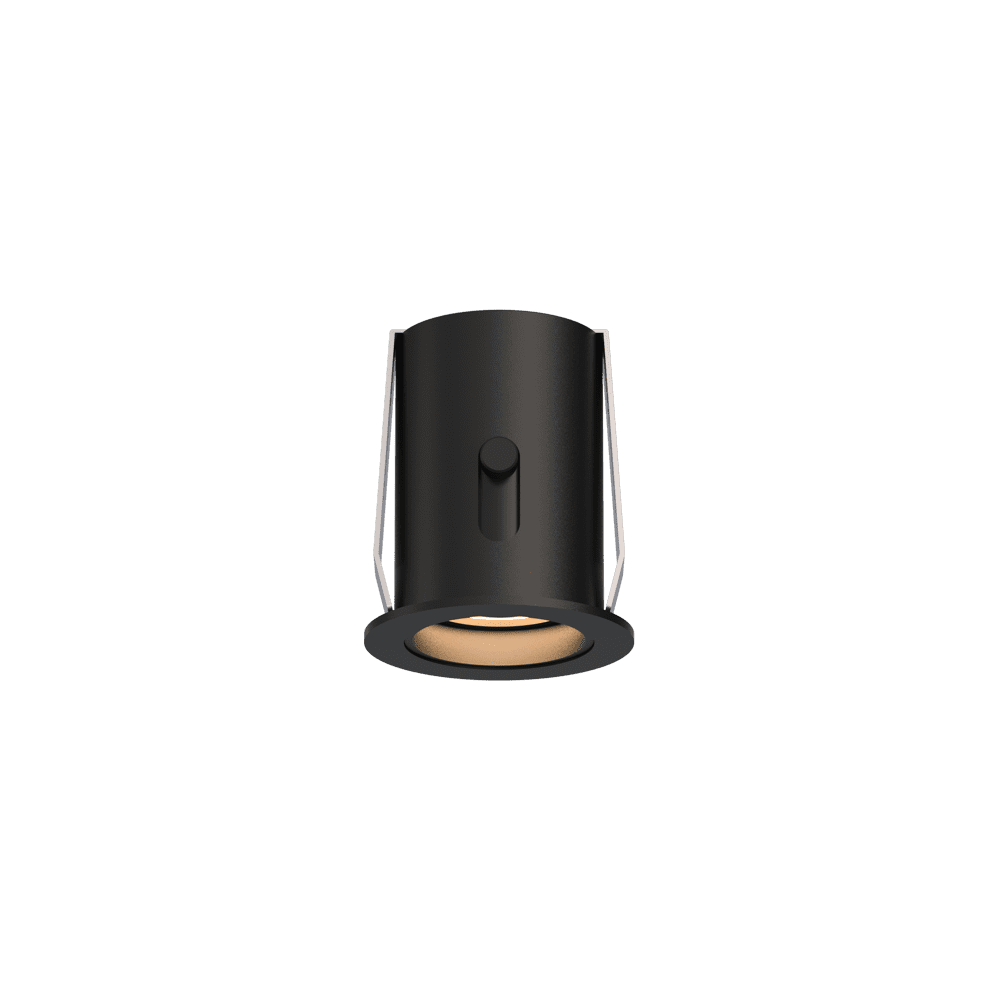

Downlight

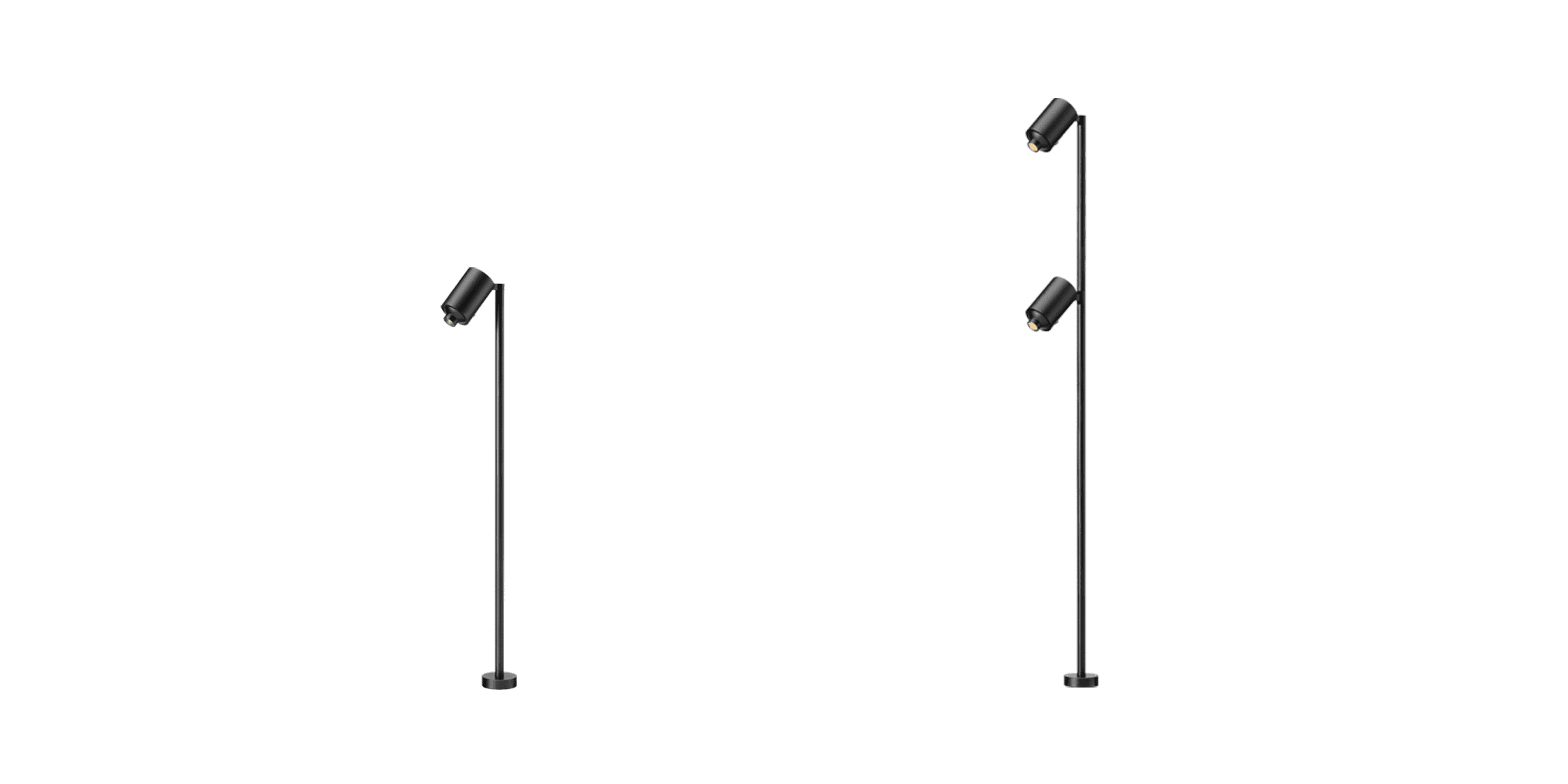

StandingPole
BEAM ANGLE
3~8o / 6~45o
Round
8o/12o/24o/36o
Round
SPECIFICATIONS
2700K CRI 95 1W Led Flux 100lm
3000K CRI 95 1W Led Flux 107lm
3500K CRI 95 1W Led Flux 110lm
4000K CRI 95 1W Led Flux 114lm
2700K CRI 95 2W Led Flux 130lm
3000K CRI 95 2W Led Flux 142lm
3500K CRI 95 2W Led Flux 148lm
4000K CRI 95 2W Led Flux 155lm
2700K CRI 95 3W Led Flux 200lm
3000K CRI 95 3W Led Flux 220lm
3500K CRI 95 3W Led Flux 225lm
4000K CRI 95 3W Led Flux 230lm
CONTROL
0/1 -10V dimmable
DALI dimmable
Phase dimmable (Triac)
Casambi dimmable
OPTIONAL ACCESSORIES
Color coated lens
Honeycomb louver
HOUSING COLOUR
Black
Silvery
Customized
System Electrical: 1x3W / DC3V 700mA(MAX)

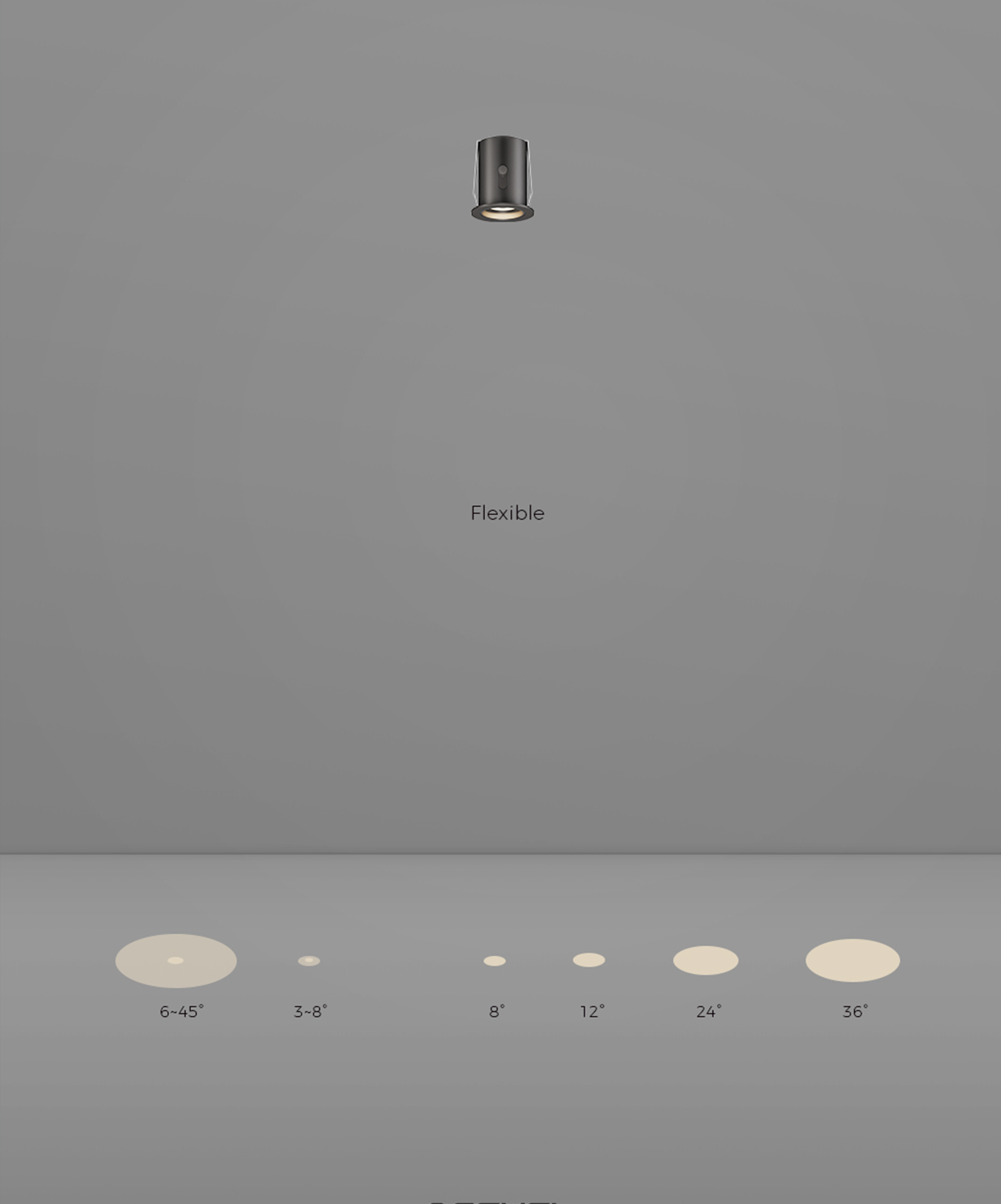

LIGHT OF MAX FLEXIBILITY
Plan your own exclusive design solution
3~8°
6~45°
8°
12°
24
36
