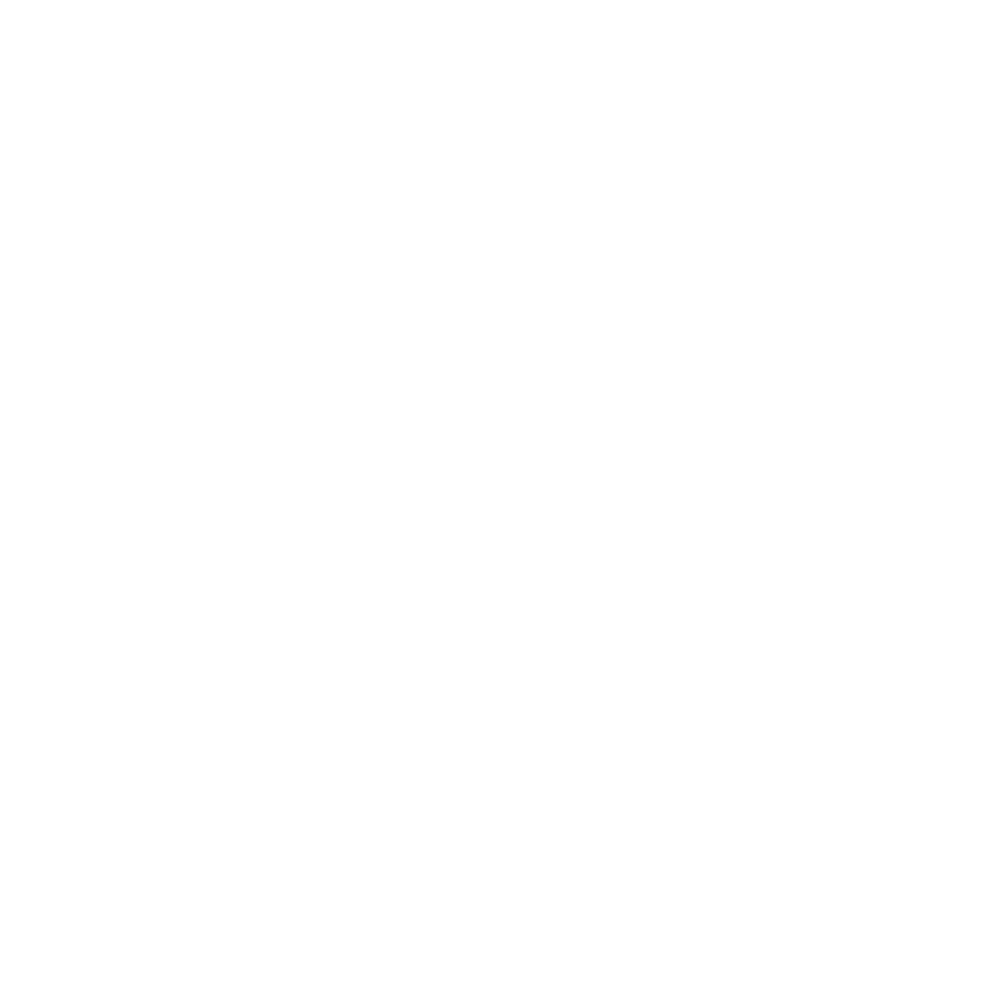

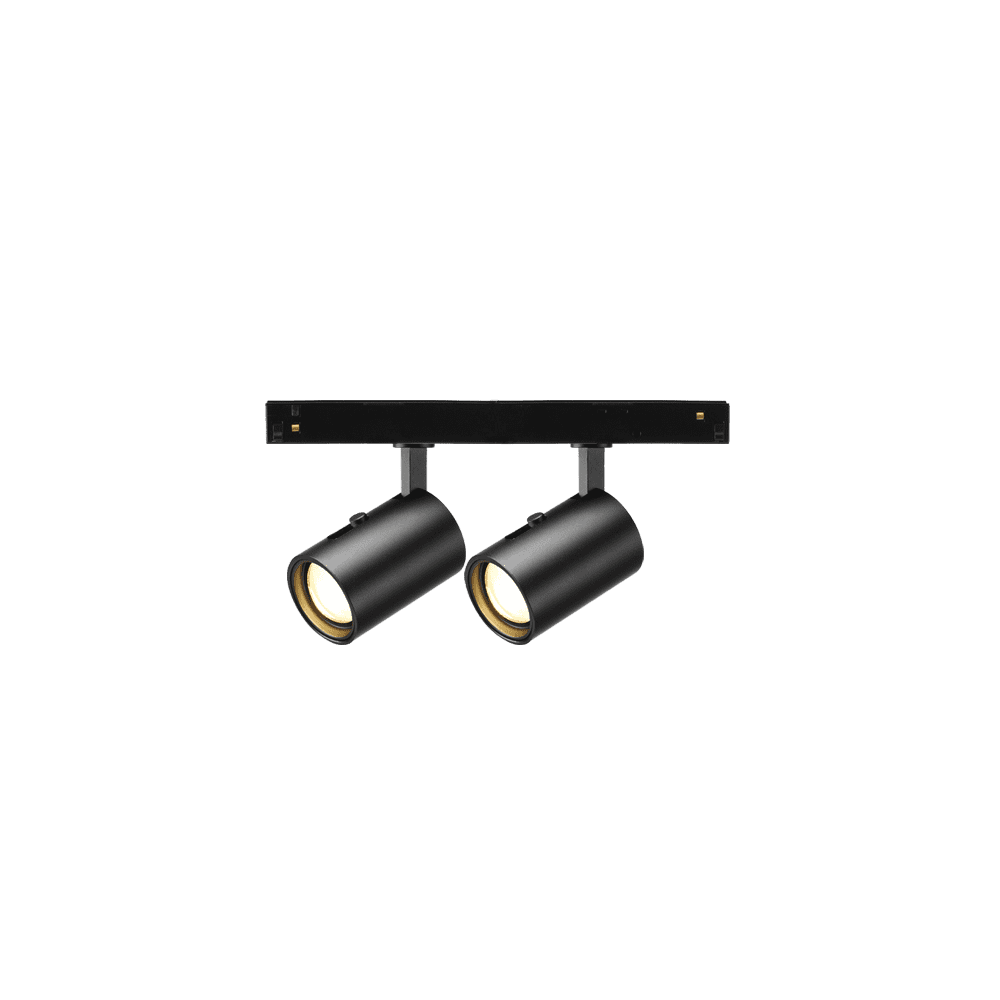

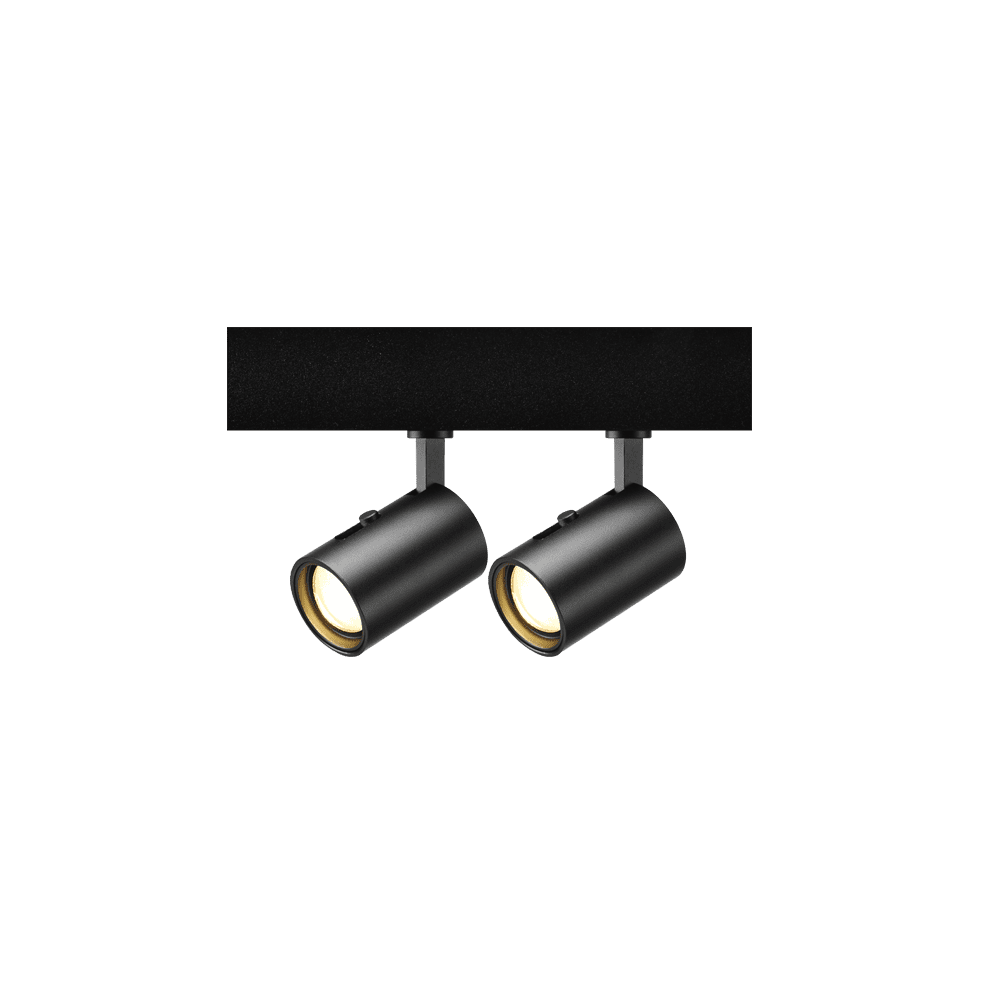

Infinity V28 Dou Magnetic

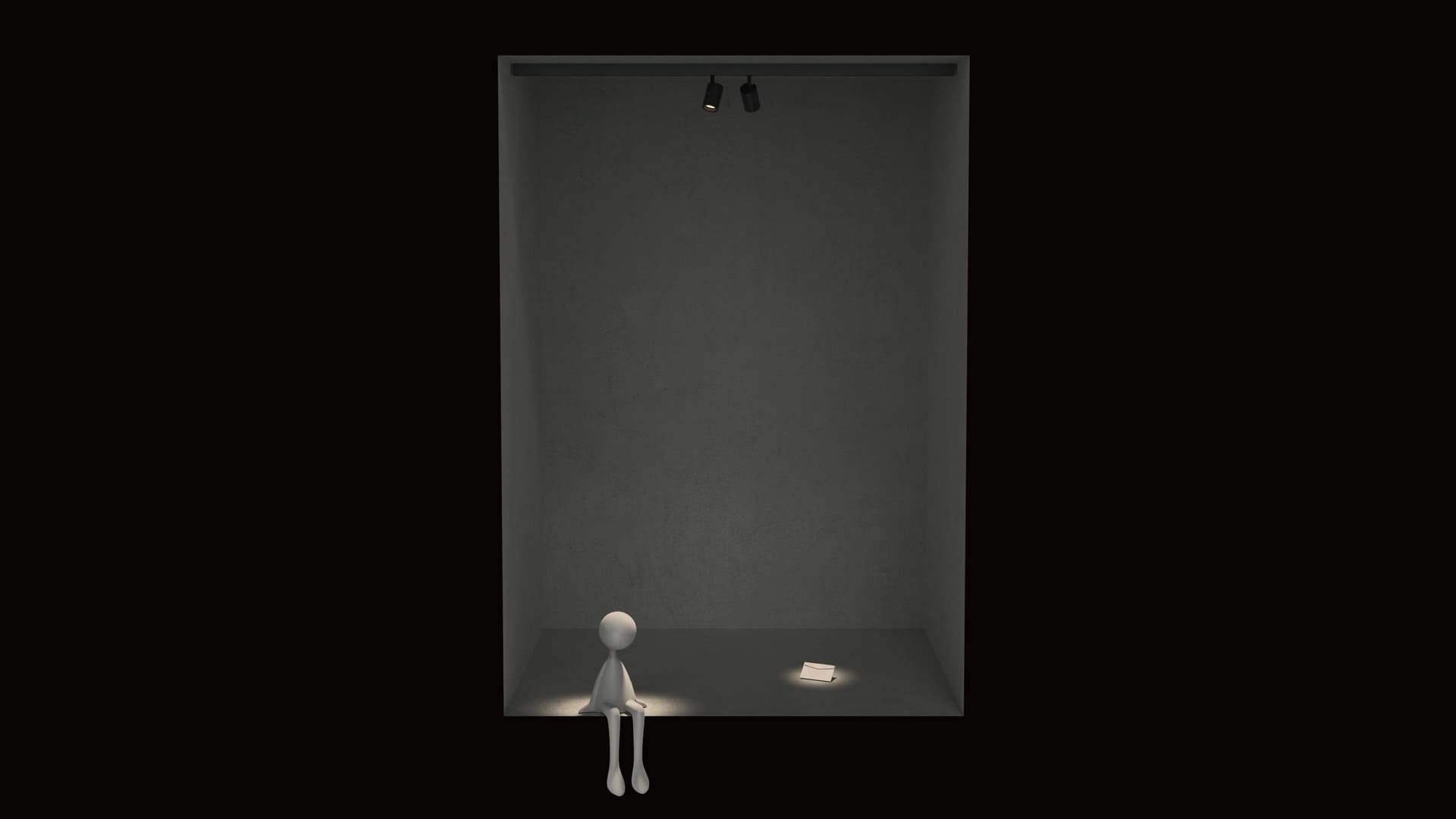

With its tiny and unique structure, full spectrum R1-R15>90, R9=99, CRI98/95, Infinity V28 series luminaires are the best solution to highlight details in exhibition niches, to catch the viewers’ attentions. Zoom 3-8 ° , 6-45 ° break the record of the smallest beam angle in the market, fully lighting on every details. Thanks to its particular flexibility and adjustability, this 3-8 ° , 6-45 ° zoom spot is the ideal fixture for museums and high-end cabinets to show different exhibits.

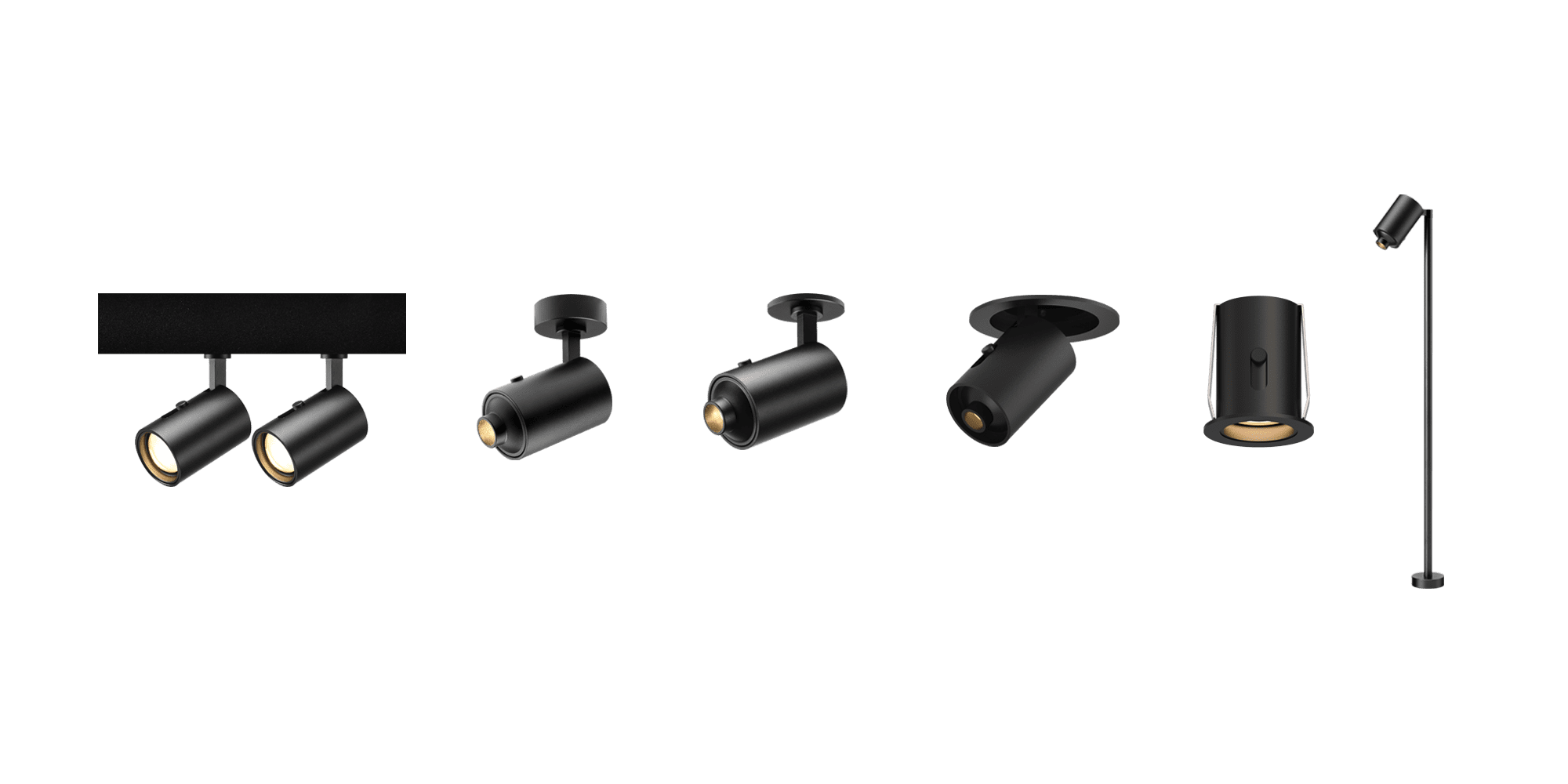

All

Magnetic

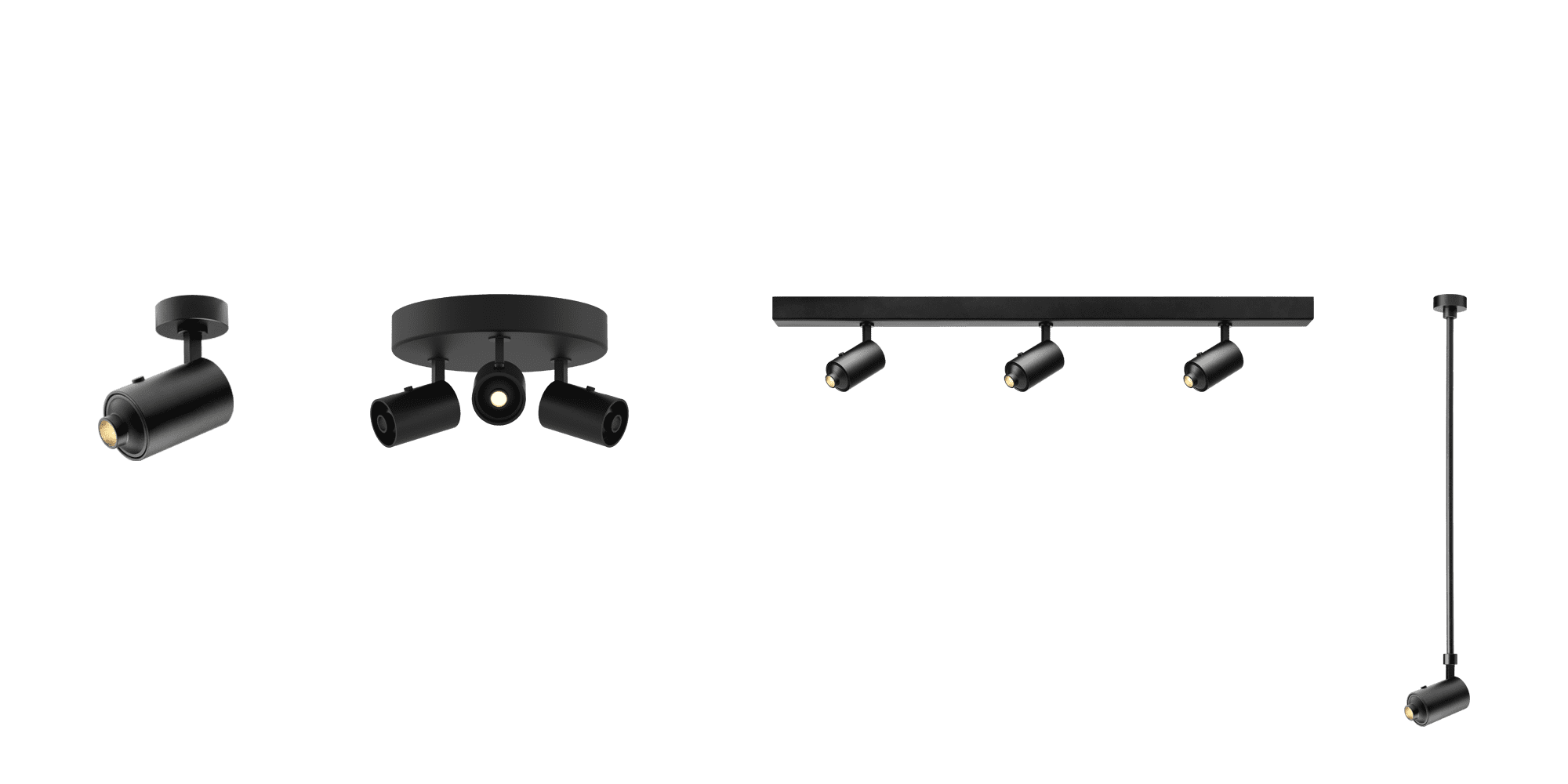

Ceiling

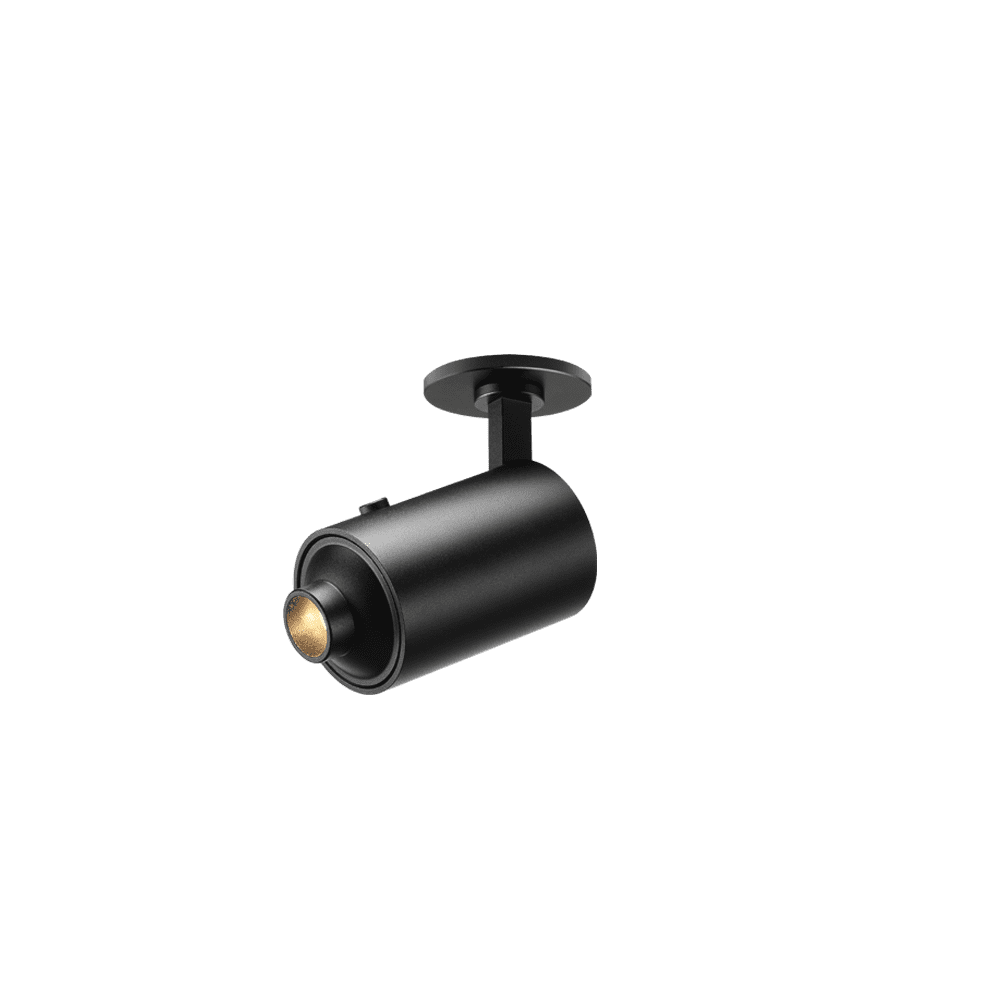

Embedded

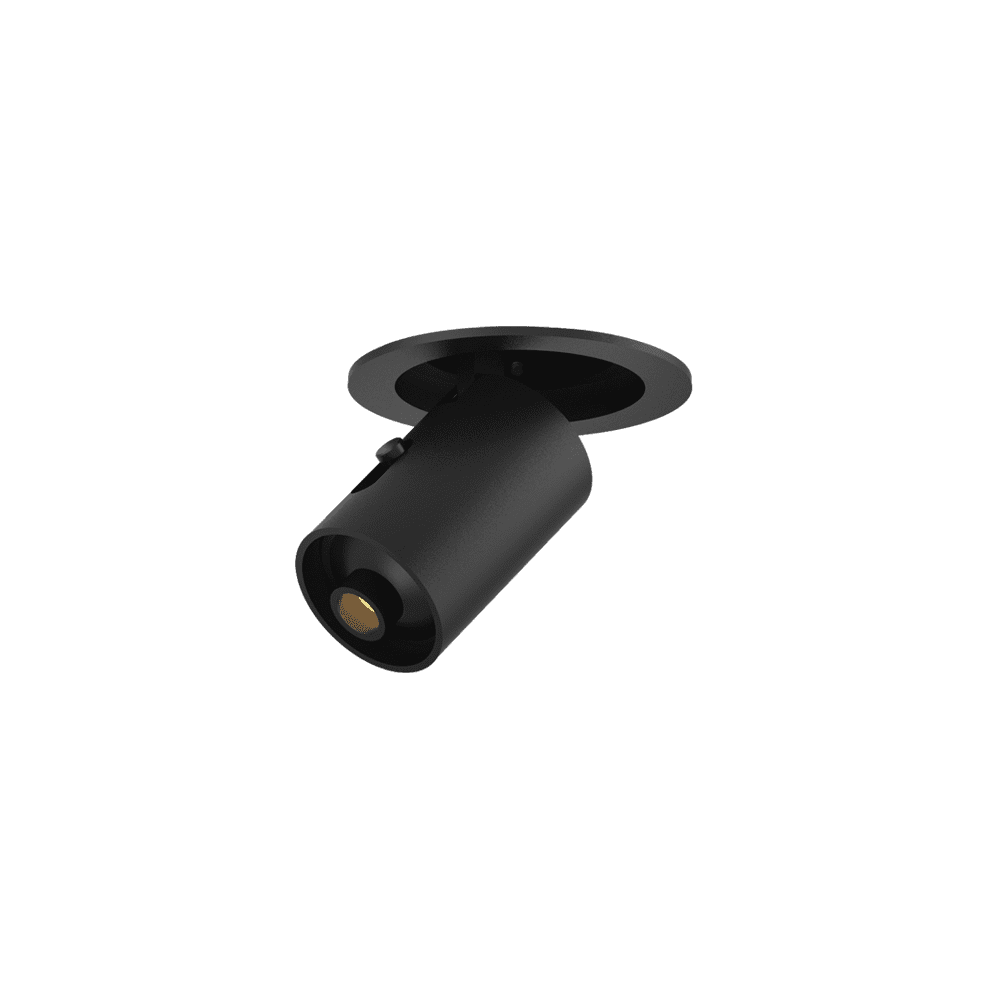

Recessed

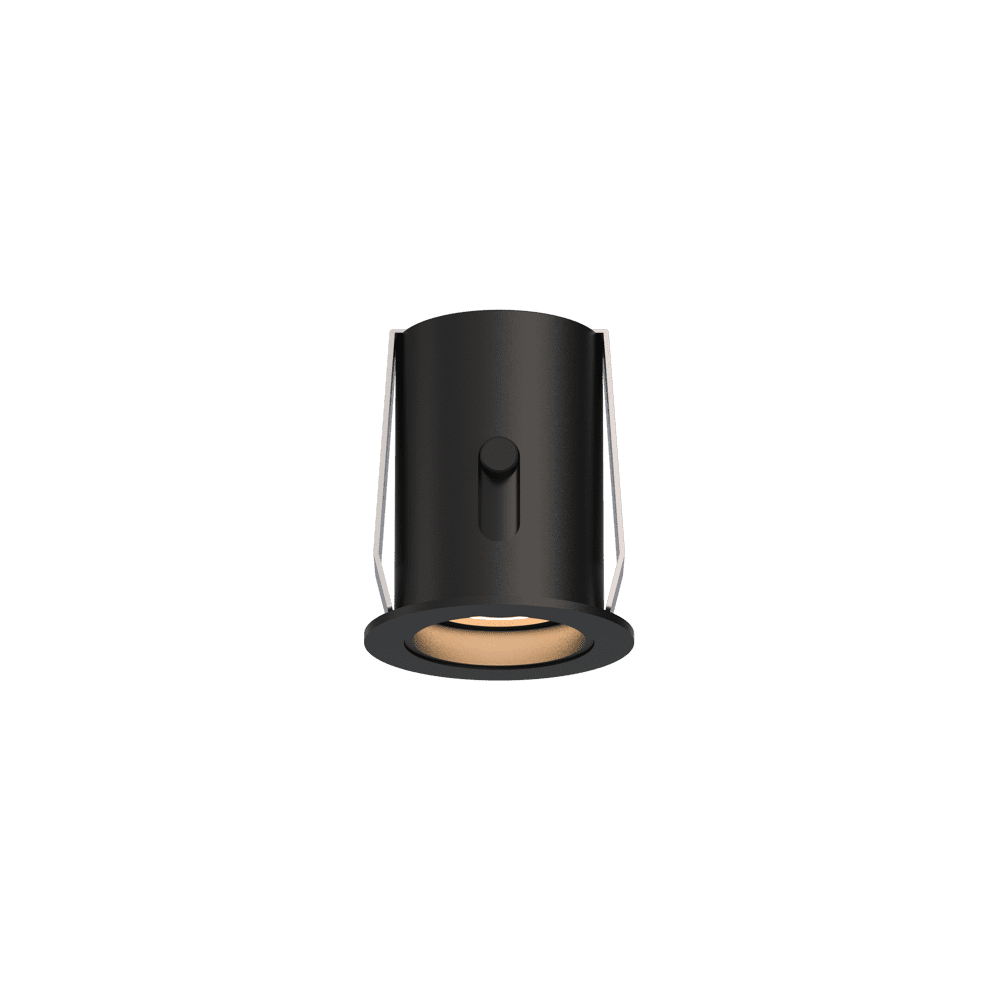

Downlight

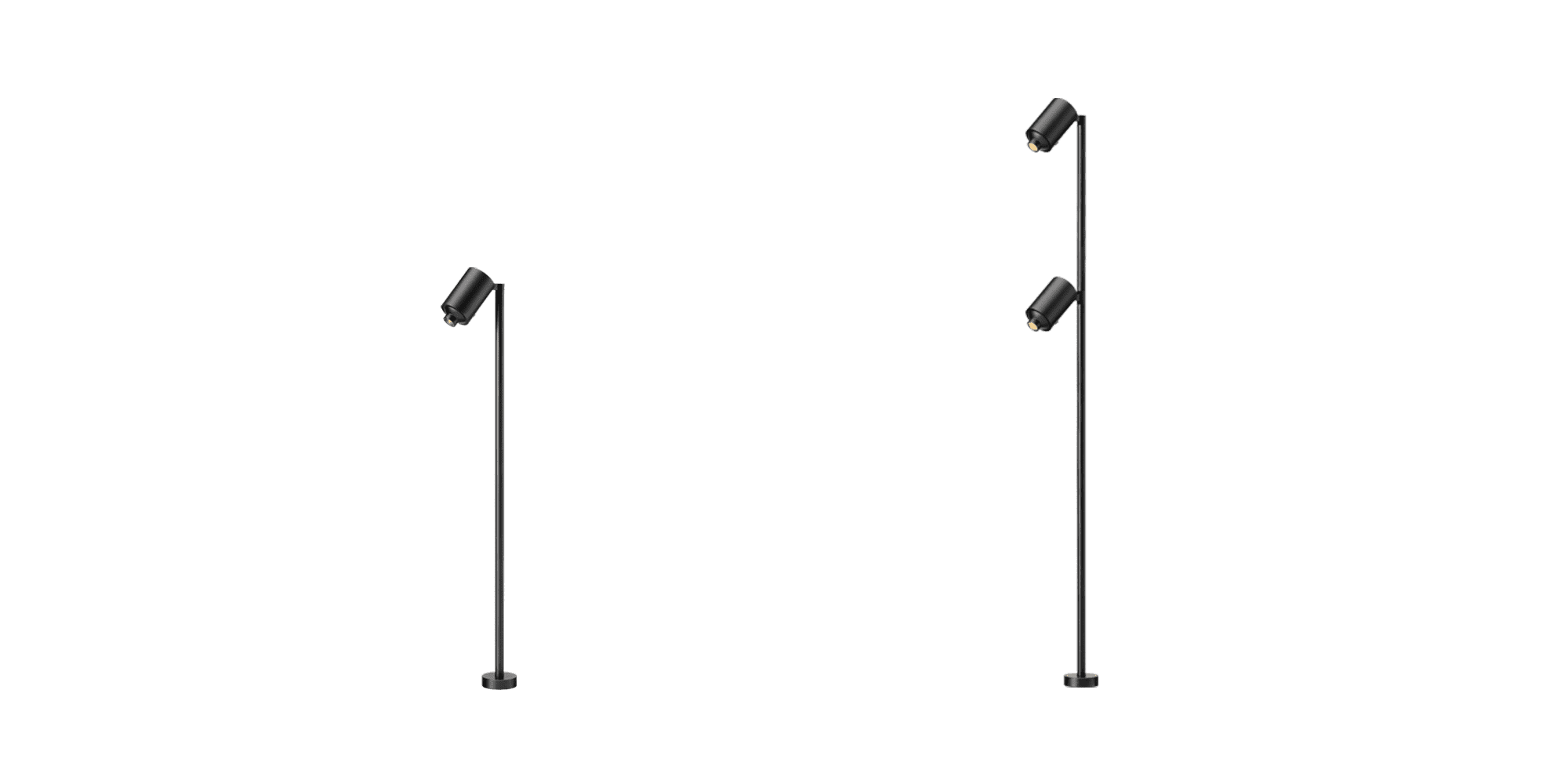

StandingPole

BEAM ANGLE

3~8o / 6~45o

Round

8o/12o/24o/36o

Round

SPECIFICATIONS

2700K CRI 95 2x1W Led Flux 200lm

3000K CRI 95 2x1W Led Flux 214lm

3500K CRI 95 2x1W Led Flux 217lm

4000K CRI 95 2x1W Led Flux 228lm

2700K CRI 95 2x2W Led Flux 260lm

3000K CRI 95 2x2W Led Flux 284lm

3500K CRI 95 2x2W Led Flux 297lm

4000K CRI 95 2x2W Led Flux 310lm

2700K CRI 95 2x3W Led Flux 400lm

3000K CRI 95 2x3W Led Flux 440lm

3500K CRI 95 2x3W Led Flux 450lm

4000K CRI 95 2x3W Led Flux 460lm

CONTROL

0/1 -10V dimmable

DALI dimmable

Phase dimmable (Triac)

Casambi dimmable

OPTIONAL ACCESSORIES

Color coated lens

Barn doors

Honeycomb louver

HOUSING COLOUR

Black

Silvery

Customized

System Electrical: Non dim 2×3W / DC24V; 0/1-10V 2x3W / DC24V; DALI 2x3W / DC48V

3~8°

6~45°

12°

24°

36°
