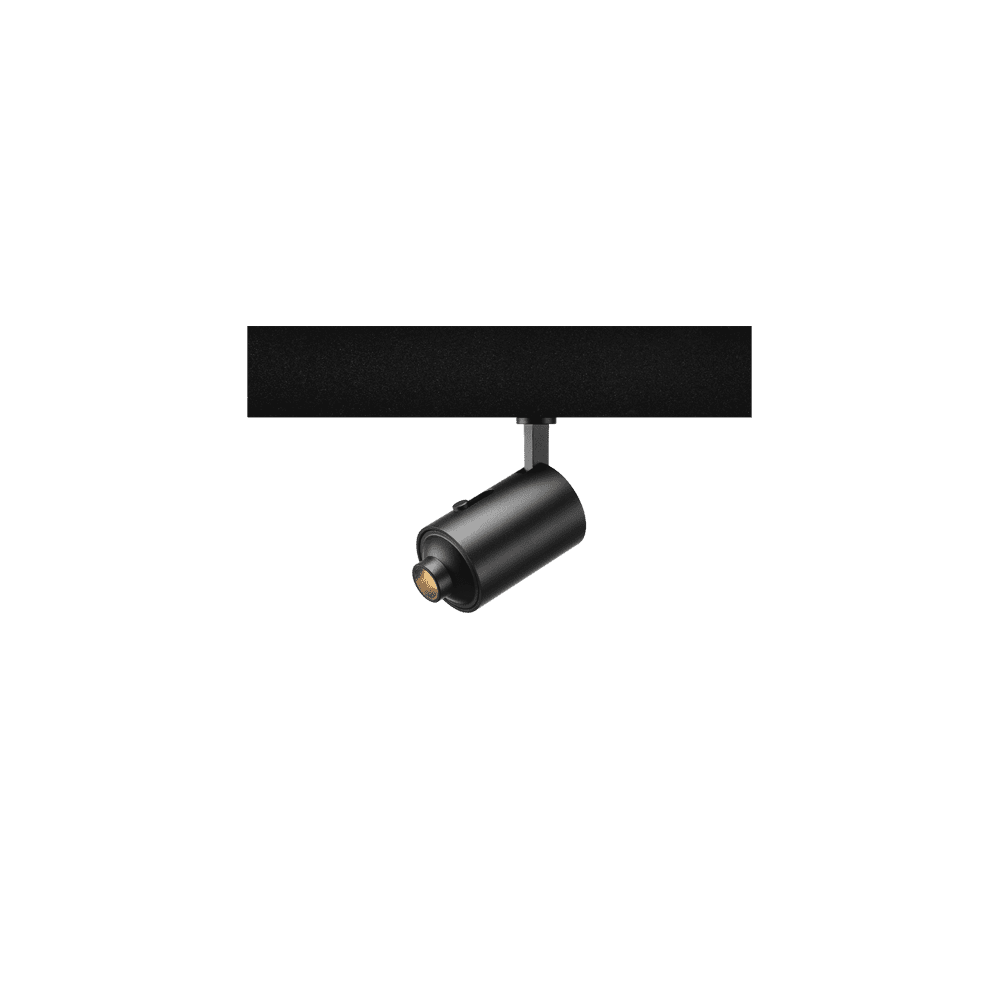

Infinity V28 Magnetic

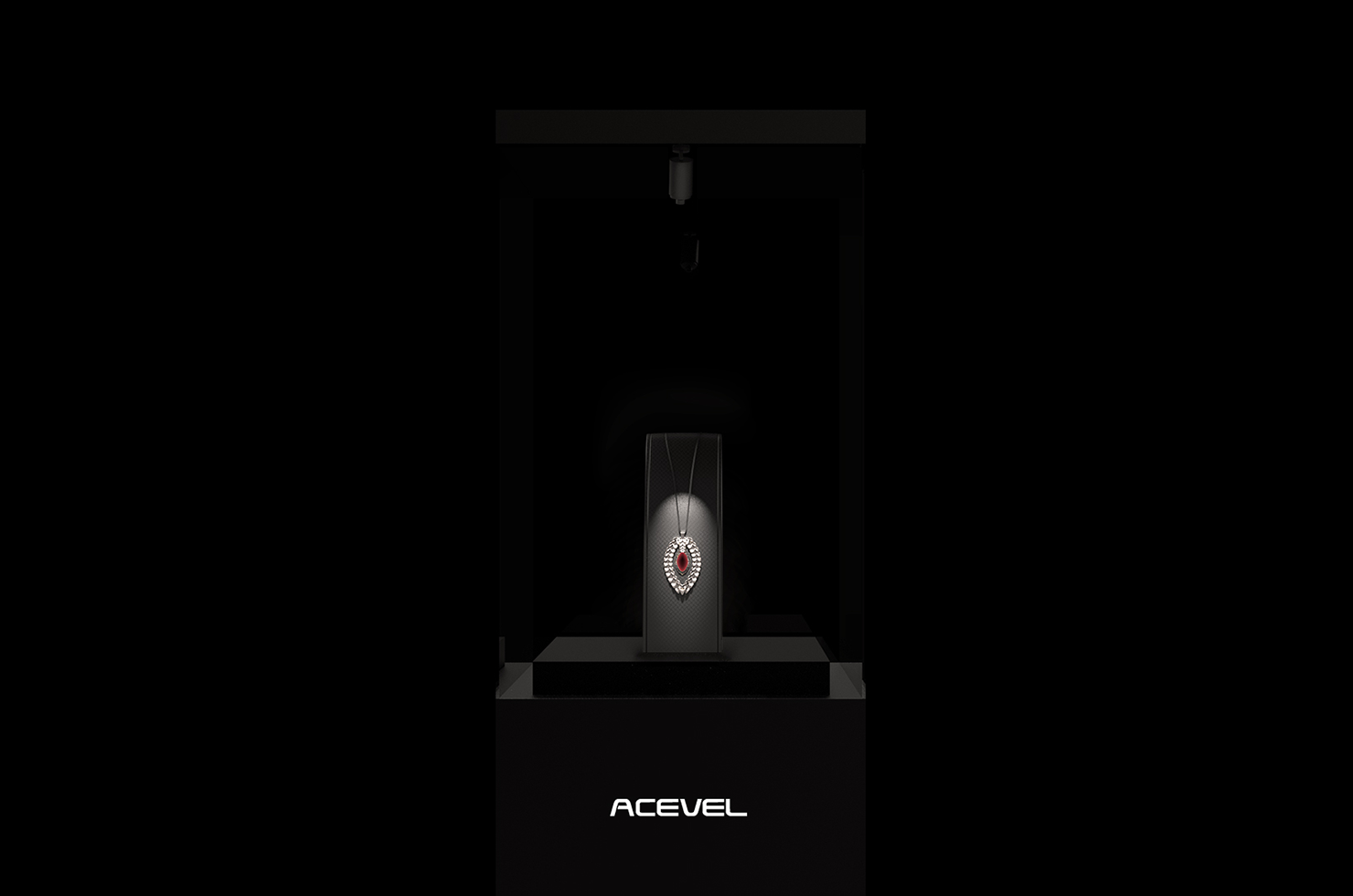

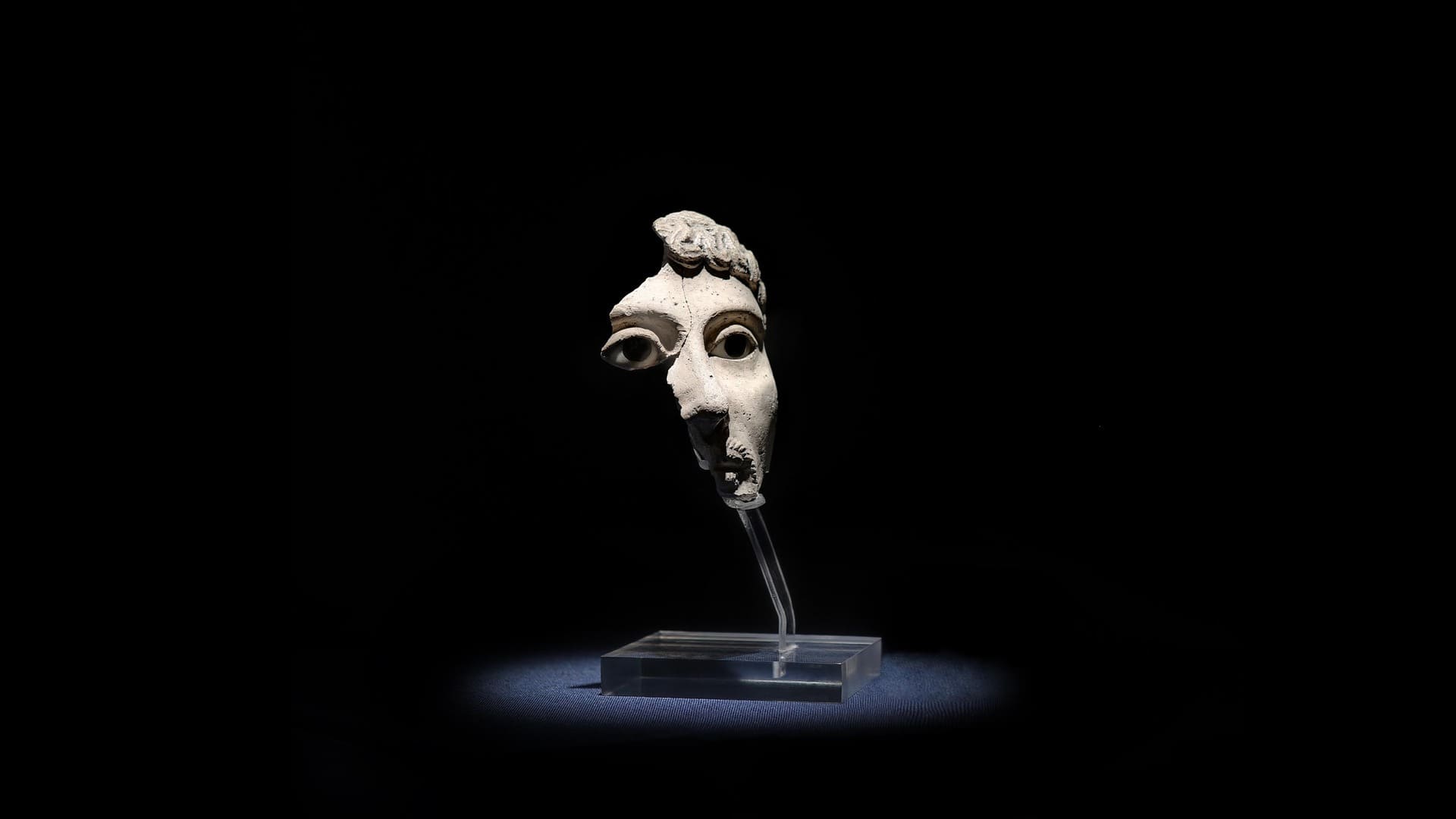

With its tiny and unique structure, full spectrum R1-R15>90, R9=99, CRI98/95, Infinity V28 series luminaires are the best solution to highlight details in exhibition niches, to catch the viewers’ attentions. Zoom 3-8 ° , 6-45 ° break the record of the smallest beam angle in the market, fully lighting on every details. Thanks to its particular flexibility and adjustability, this 3-8 ° , 6-45 ° zoom spot is the ideal fixture for museums and high-end cabinets to show different exhibits.

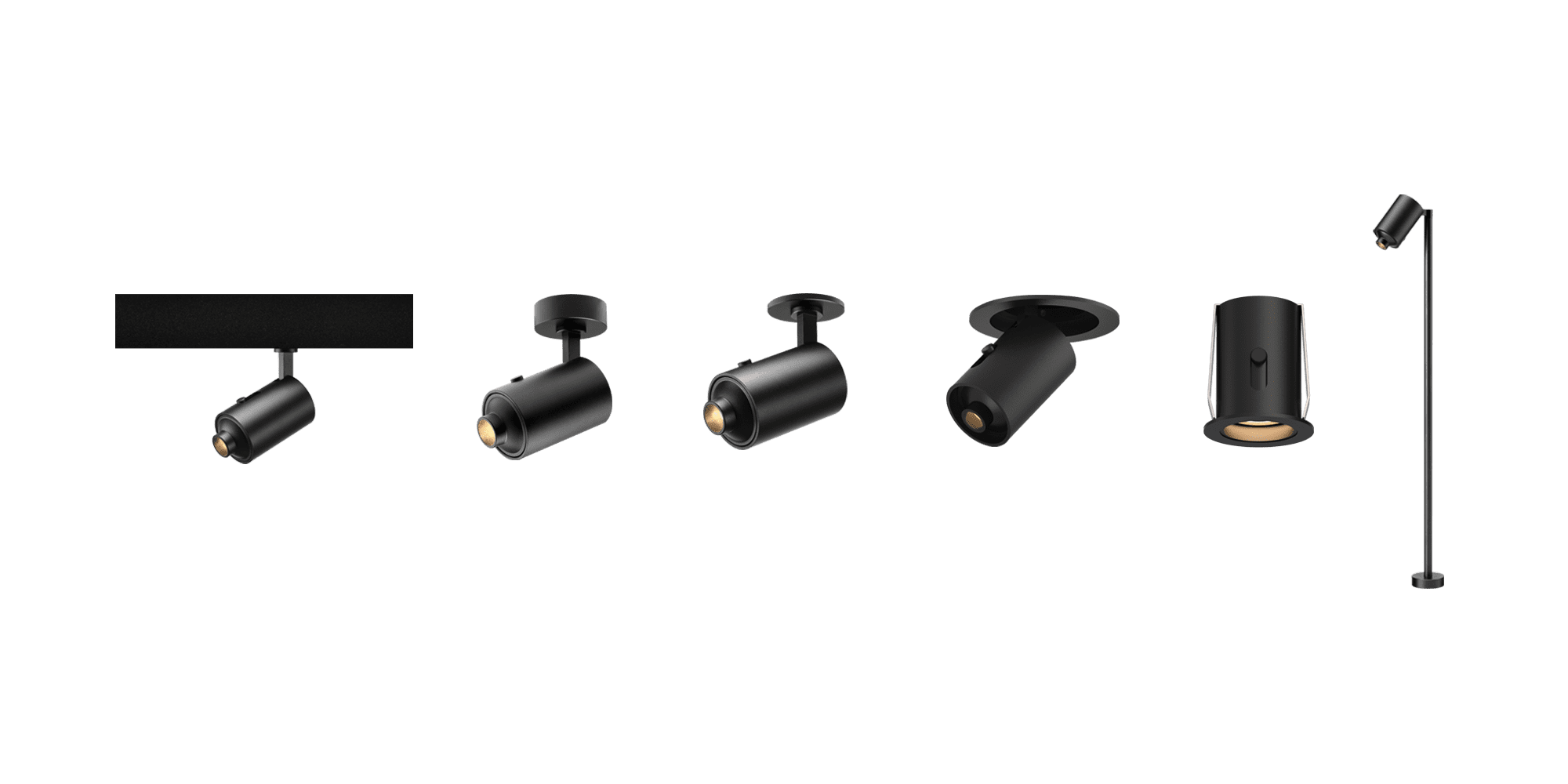

All

Magnetic

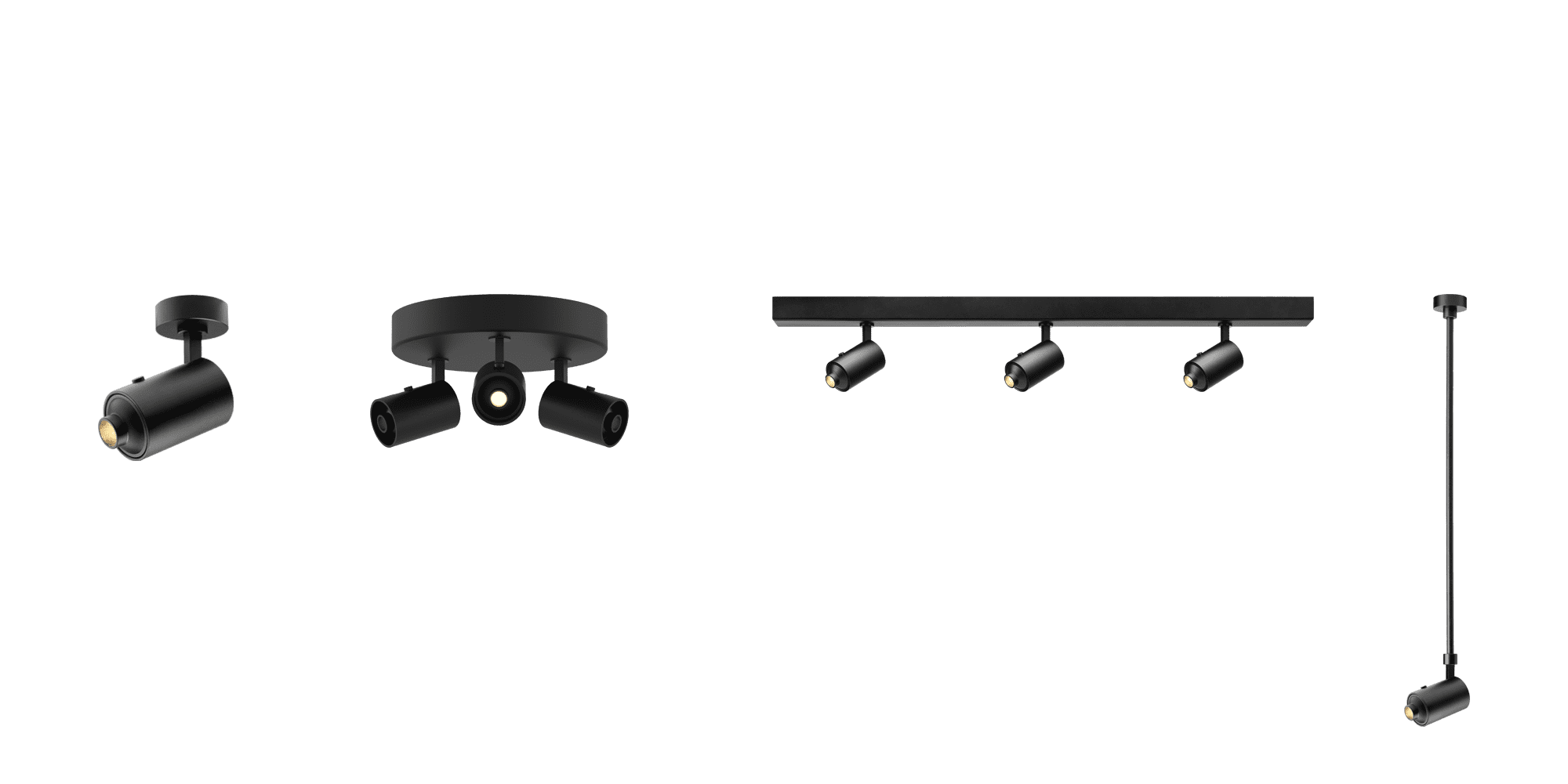

Ceiling

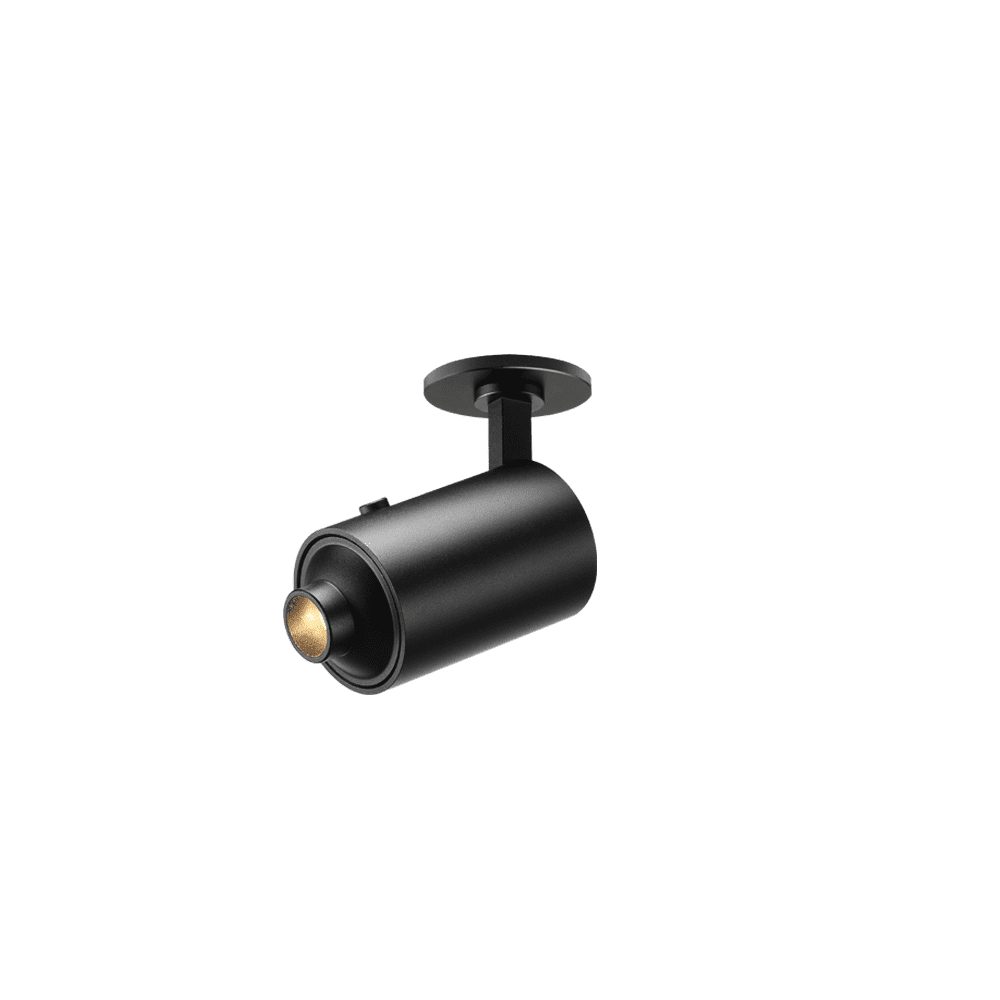

Embedded

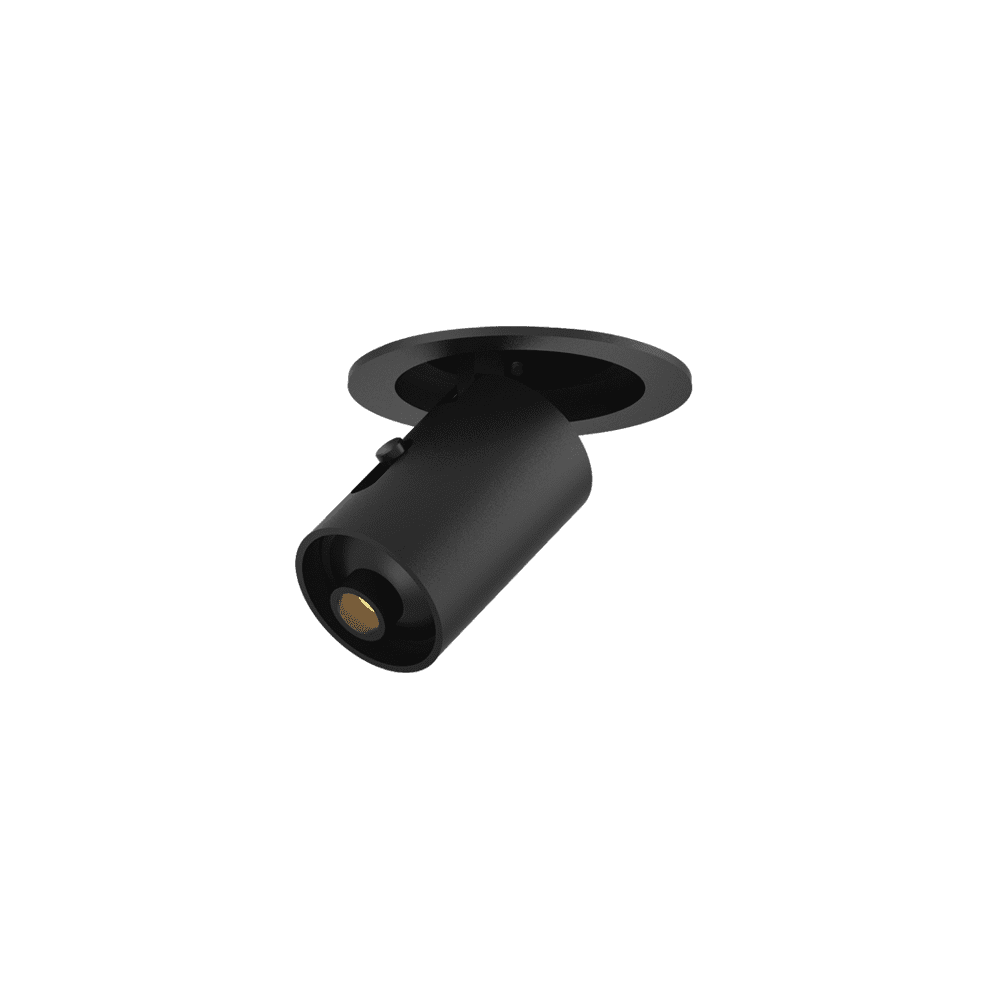

Recessed

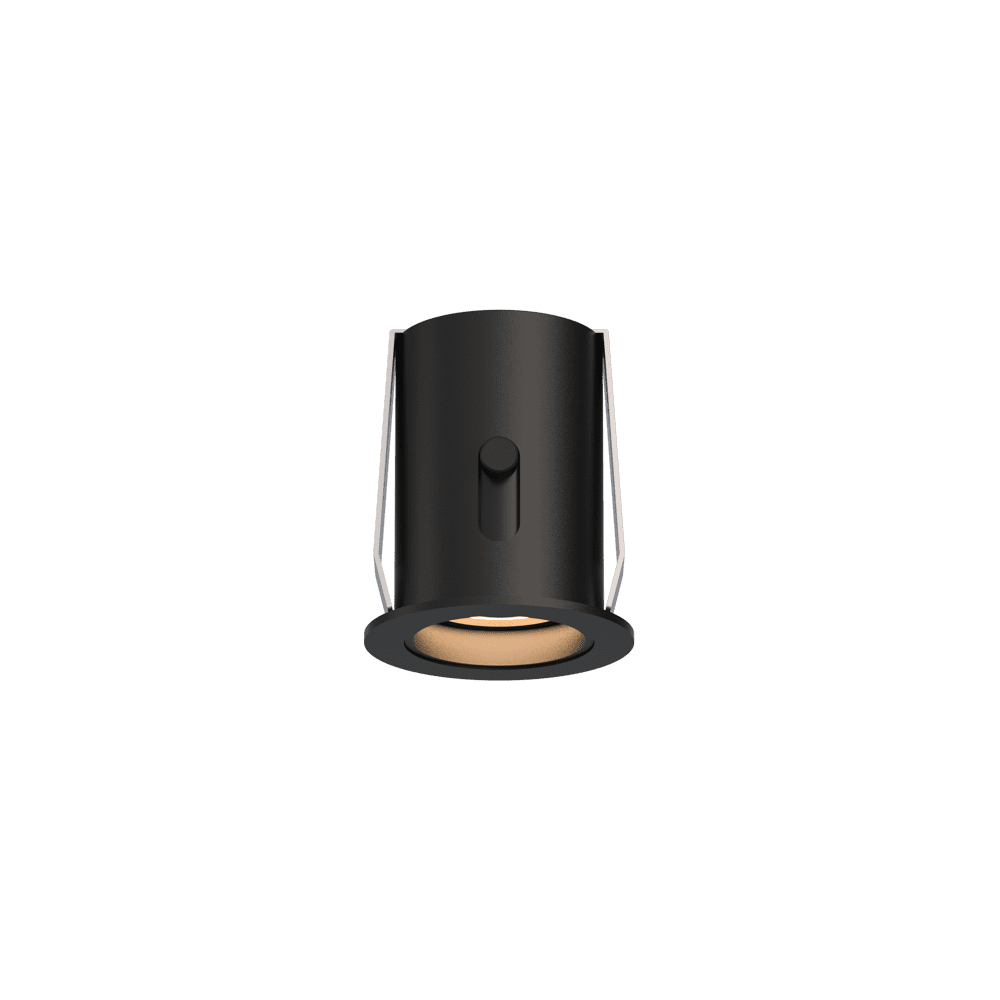

Downlight

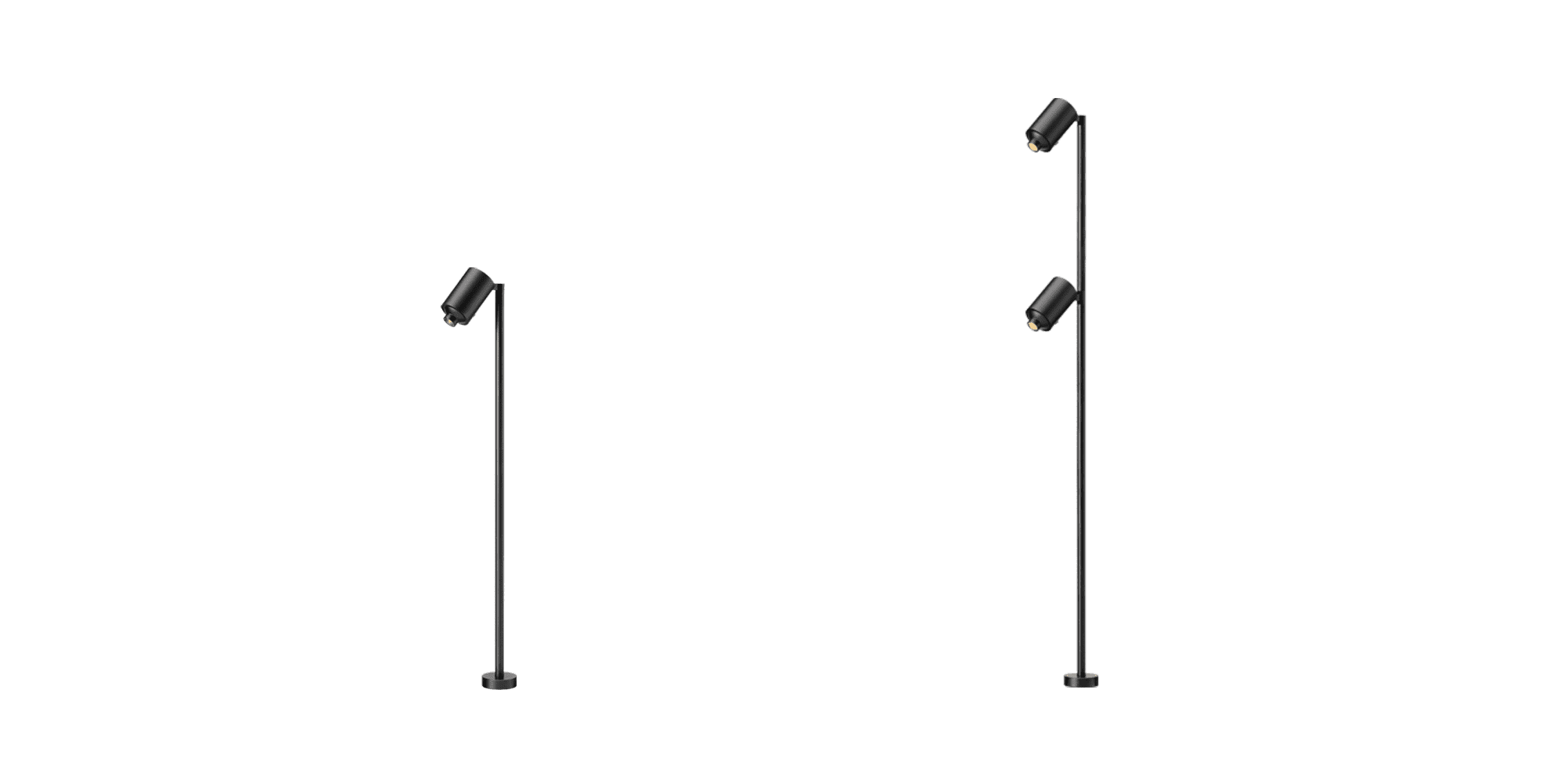

StandingPole

BEAM ANGLE

3~8o / 6-45o

Round

8o/12o/24o/36o

Round

SPECIFICATIONS

2700K CRI 95 1W Led Flux 100lm

3000K CRI 95 1W Led Flux 107lm

3500K CRI 95 1W Led Flux 110lm

4000K CRI 95 1W Led Flux 114lm

2700K CRI 95 2W Led Flux 130lm

3000K CRI 95 2W Led Flux 142lm

3500K CRI 95 2W Led Flux 148lm

4000K CRI 95 2W Led Flux 155lm

2700K CRI 95 3W Led Flux 200lm

3000K CRI 95 3W Led Flux 220lm

3500K CRI 95 3W Led Flux 225lm

4000K CRI 95 3W Led Flux 230lm

CONTROL

0/1 -10V dimmable

DALI dimmable

Phase dimmable (Triac)

Casambi dimmable

OPTIONAL ACCESSORIES

Color coated lens

Barn doors

Honeycomb louver

HOUSING COLOUR

Black

Silvery

Customized

System Electrical: Non dim 1×3W / DC24V; 0/1-10V 1x3W / DC24V; DALI 1x3W / DC48V

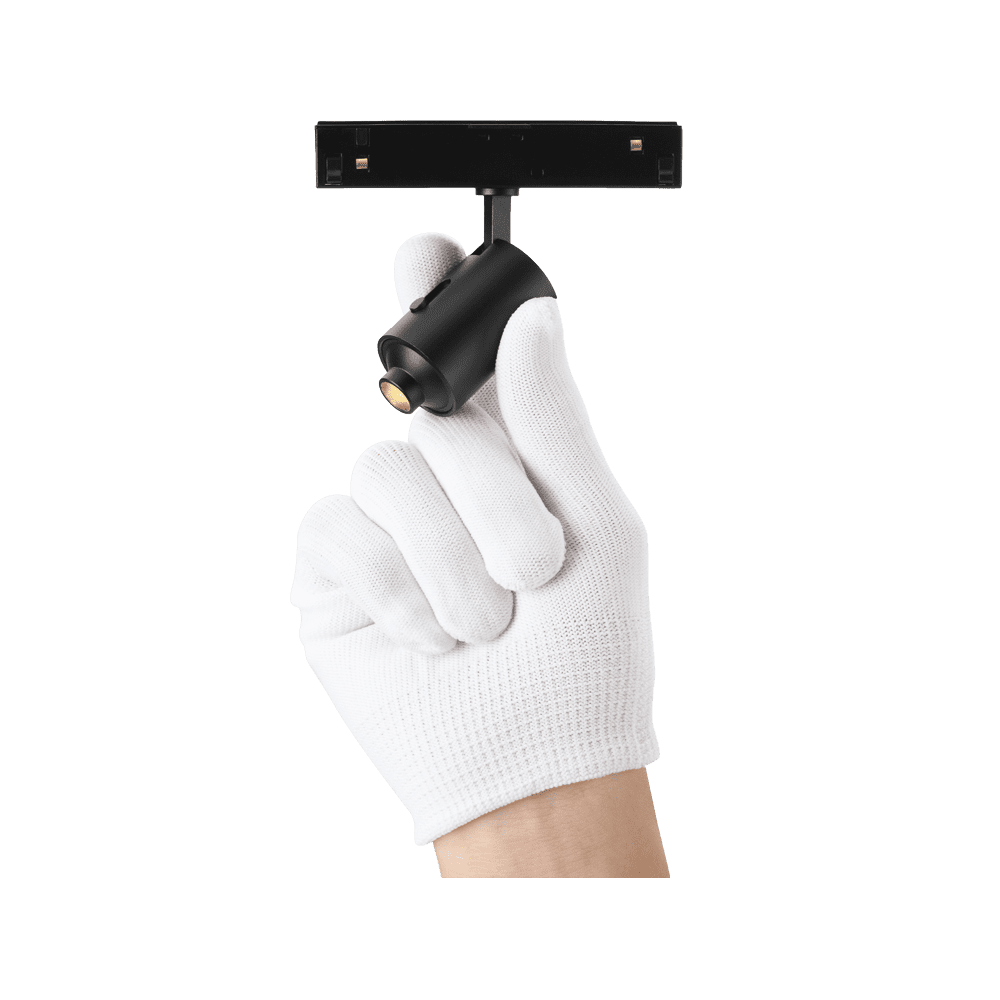

THINK SMALL

Plan your own exclusive design solution

3-8°

6-45°

12°

24°

36°
